About the product

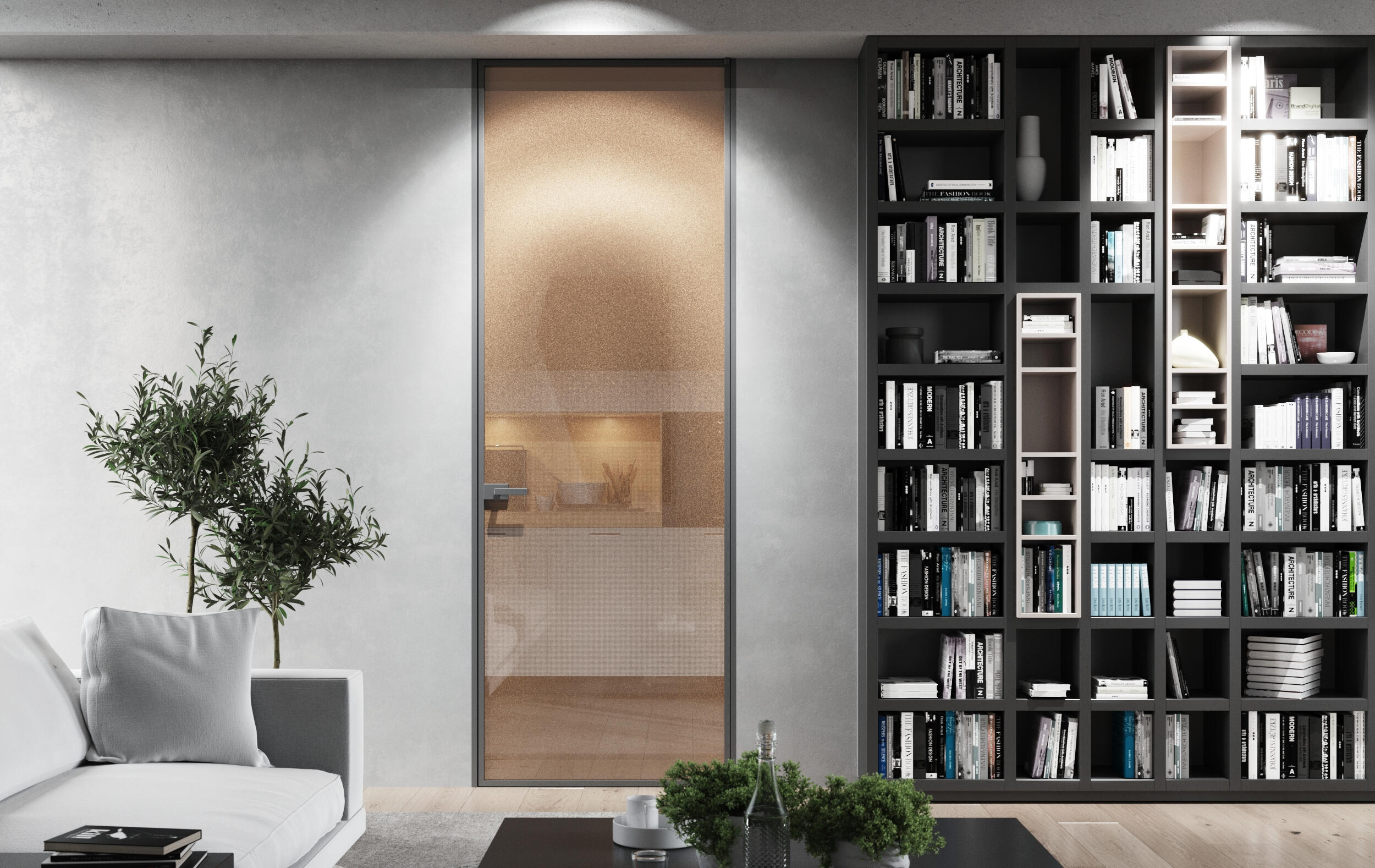

Ideanet interior revolving doors have an aluminium perimeter frame and a glass panel with a laminated metal mesh with a holographic effect. Idea revolving doors can be only single-leaf and without a door header, but with an optional fixed window hole. Idea revolving doors are intended for Garde doorframes.
The Garde doorframe goes into the existing construction opening. Ideanet revolving doors are non-rebated and have a door leaf 40 mm thick.Maximum dimensions of Ideanet revolving doors are 1,036 mm x 2,700 mm. Weight of 1 m² Ideanet door with glass 10 mm thick is 30 kg. The metal mesh sections measure about 0.2 mm x 0.2 mm, and we offer them in two colours — silver (metal) and gold (brass).
Gallery / inspiration
Technical information
Standard width of passage | according to standard Idea door leaf dimensions by JAP |
Standard height of passage | according to standard Idea door leaf dimensions by JAP |
Custom passage height | 1 975 - 2 800 mm |
Minimal thickness of finished crossbar | 100 mm |
Materials
- the door frame is made of anodized aluminium profile with surface options according to the RAL, K7, NCS swatch books
- 9 mm thick glass panel, where a decorative metal mesh is sandwiched between two 4 mm tempered glass panes (4 mm tempered glass + 1 mm decorative metal mesh + 4 mm tempered glass)
- types of glass door panels: clear glass, extra clear glass, Planibel (tinted glass), bronze or Planibel grey
- metal mesh in gold or silver colour
Fittings
- Grande door handle
- Fine door handle
- Elity door handle
