Norma Unibox

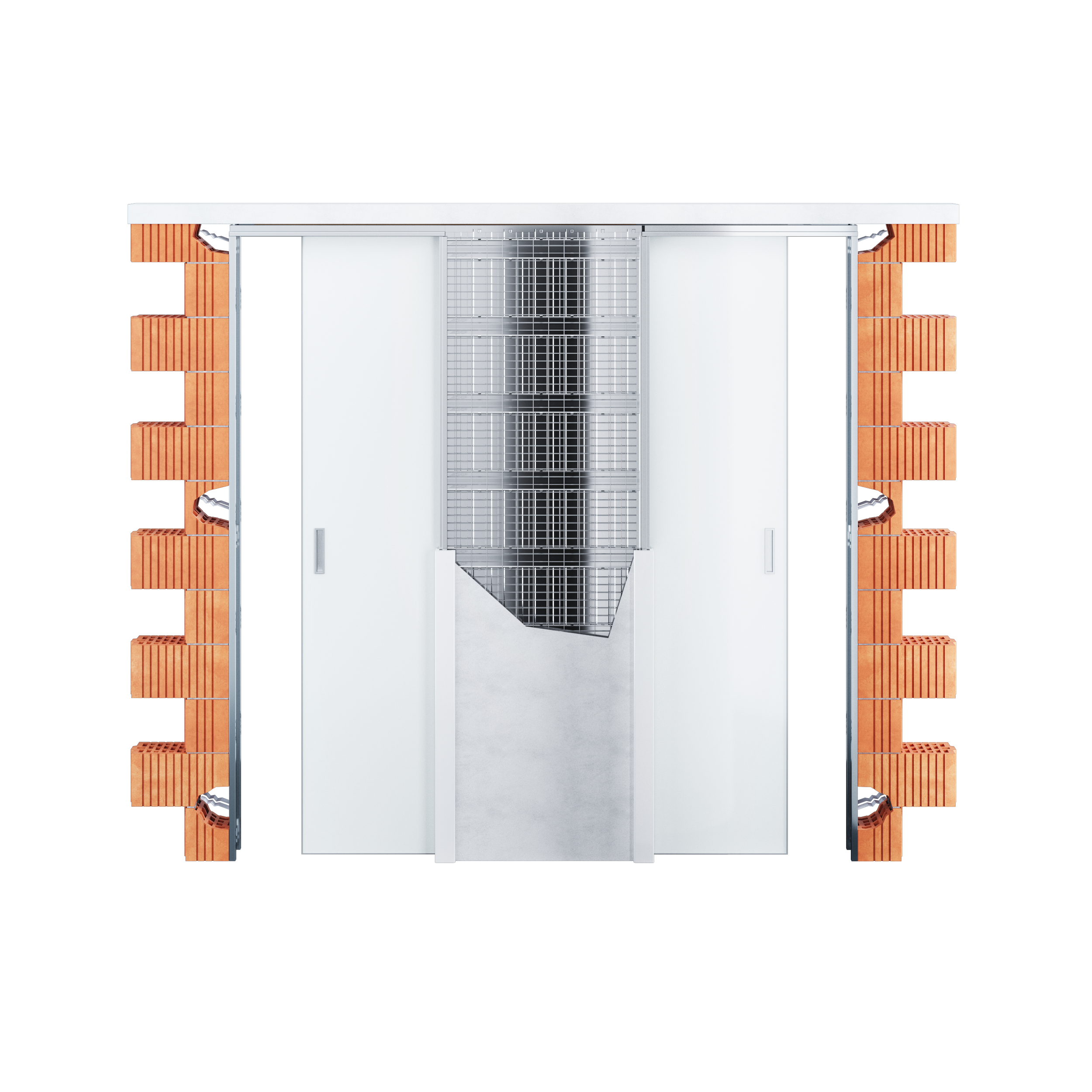

A double pocket door frame with two built-in single-leaf doors sliding behind each other in a single box, as the name implies. Ideal for separating two adjacent rooms (e.g. bathrooms and toilets in a panel flat). In contrast to previous Norma casing versions, for Unibox more space must be planned during construction preparation, so that the box is wide enough to accommodate two sliding leaves. The doors slide independently of each other. Left or right design.

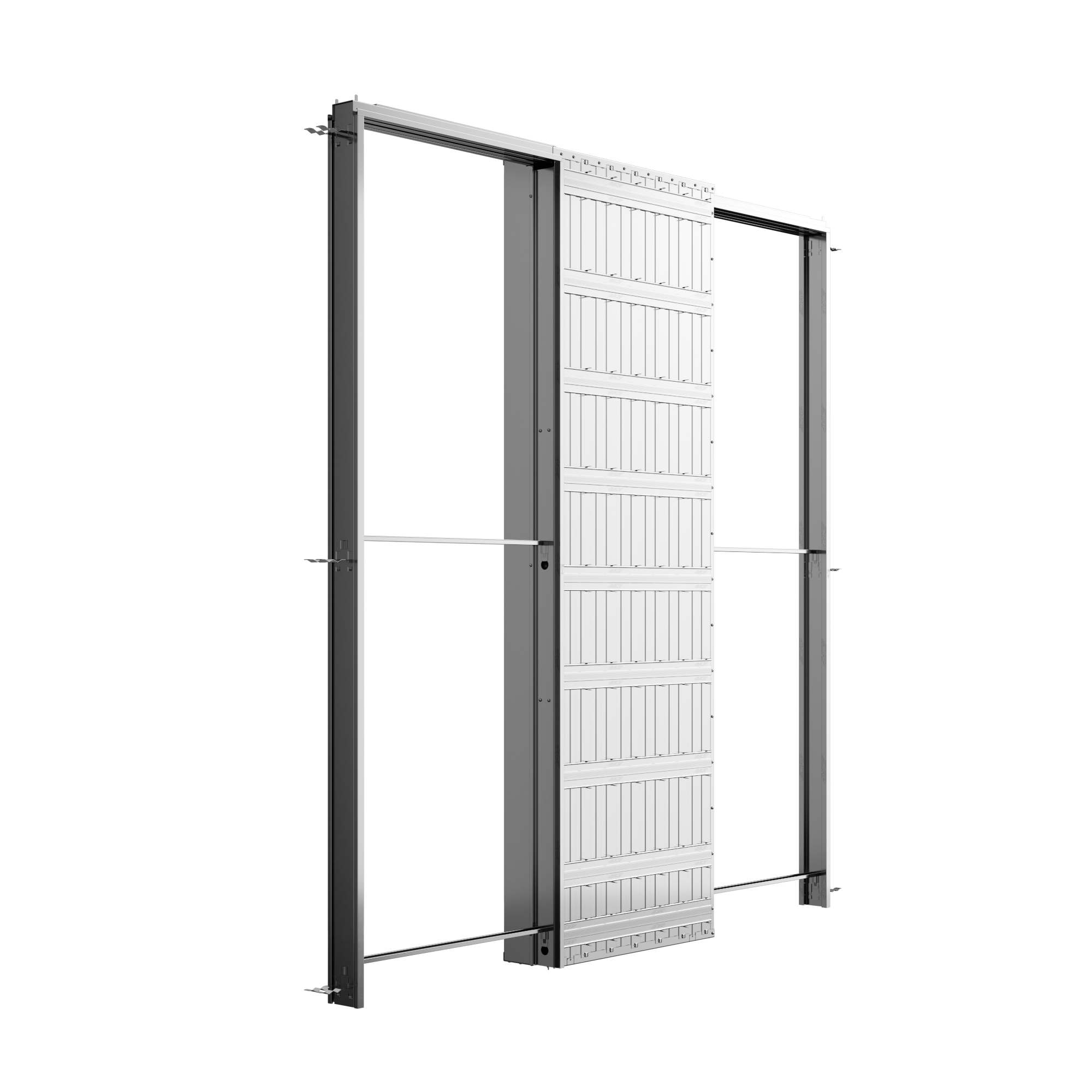

The Norma Unibox pocket door frame is welded. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load. The Norma Unibox casing is compatible with all makes of door and is for wooden, all-glass, Master or Idea doors. The entire pocket door frame is made of quality galvanized sheet metal.

• Intended for a minimum finished partition thickness of 200 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• sliding mechanisms and fixtures for wooden doors are part of the casing,
• lifetime warranty.

At extra charge:

• to mount an all-glass door leaf, a Vetro 22 fixture must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

• galvanized sheet metal
• aluminium profiles
• aluminium rail

• not painted
