Norma Komfort

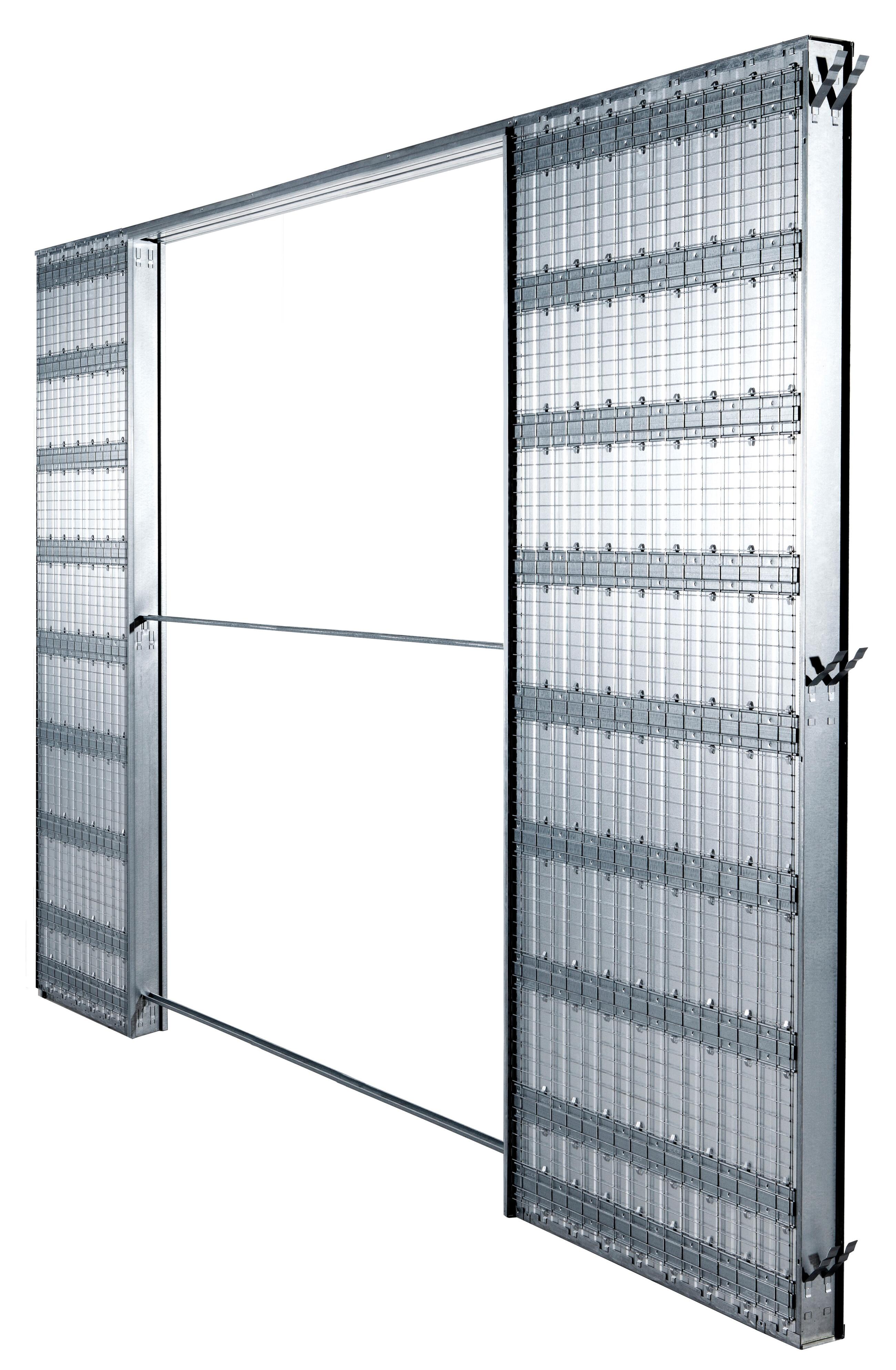

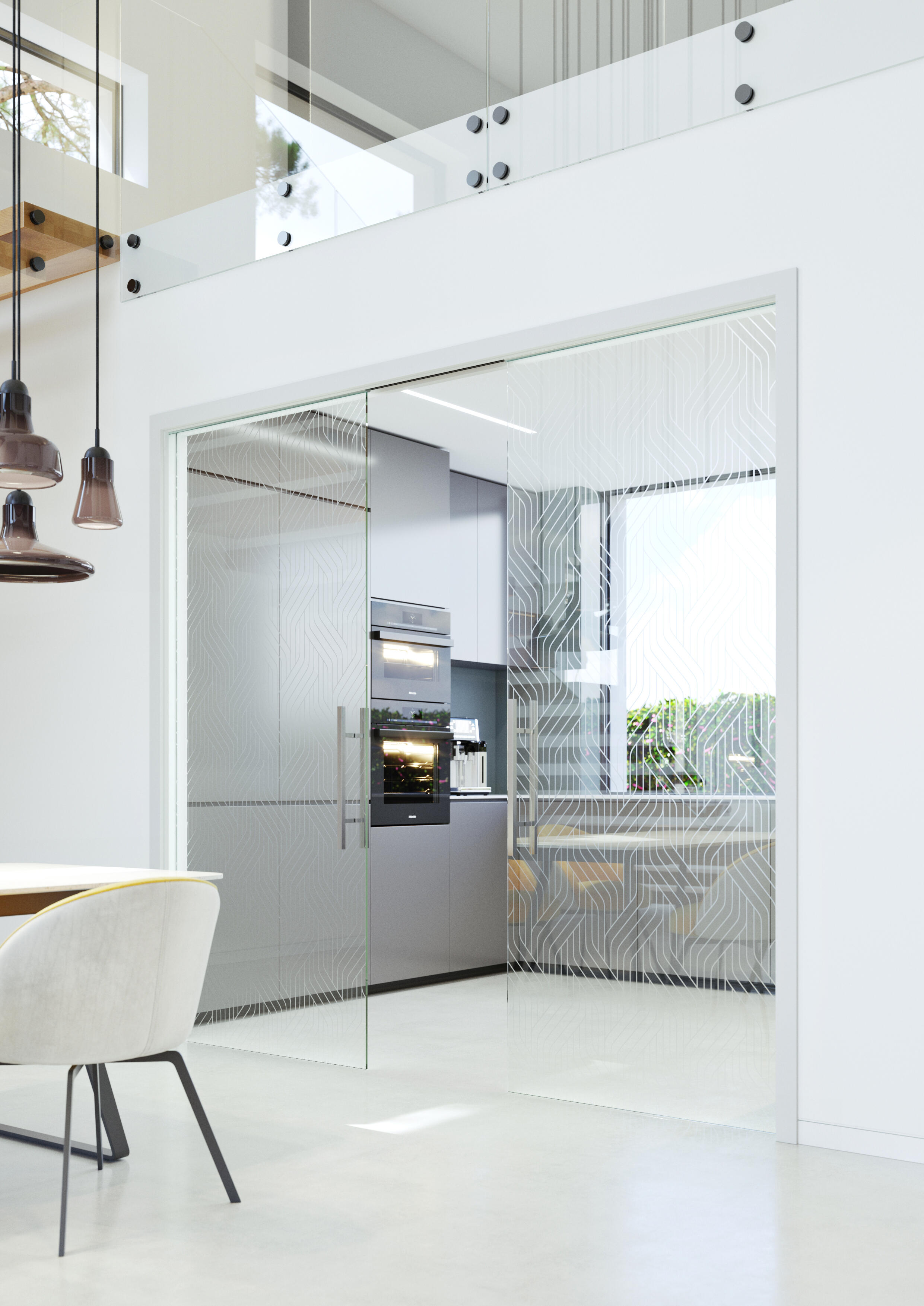

The Norma Komfort pocket door frame is made of two pocket door frames joined by a guide rail. Each of the casings is designed for one single-leaf door. Movement of the leaves can also be synchronized, so both leaves can be opened or closed simultaneously. Norma Komfort offers a solution for large spaces that can be easily joined or separated. For darker spaces there is a glass version of the door that allows maximum entry of sunlight. For darker rooms, a glazed version of the door is available, which allows maximum sunlight in. The Norma Komfort casing is for standard passage heights of 1,970 mm to 2,100 mm, made with a unique wedging method. For custom passage heights, a welded pocket door frame is supplied. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load. The Norma Komfort casing is compatible with all makes of door and is for wooden, all-glass, Master or Idea doors. The entire pocket door frame is made of quality galvanized sheet metal.

• Intended for a minimum finished partition thickness of 100 mm or 125 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• a synchronizing mechanism is included,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• sliding mechanisms and fixtures for wooden doors are part of the casing,
• lifetime warranty.

At extra charge:

• to mount an all-glass door leaf, a Vetro 22 fixture must be ordered,
• damping stop available at additional charge. To damp both sides, two single-sided door stops must be used.

Installation of the Vetro 22 fixture

• galvanized sheet metal
• aluminium profiles
• aluminium rail

• not painted
