Concealed doorframes

Efekta 40/00

The Efekta concealed doorframe is part of the cladding system of the same name. Designed so that wall cladding can be attached, forming one plane with the door

About the product

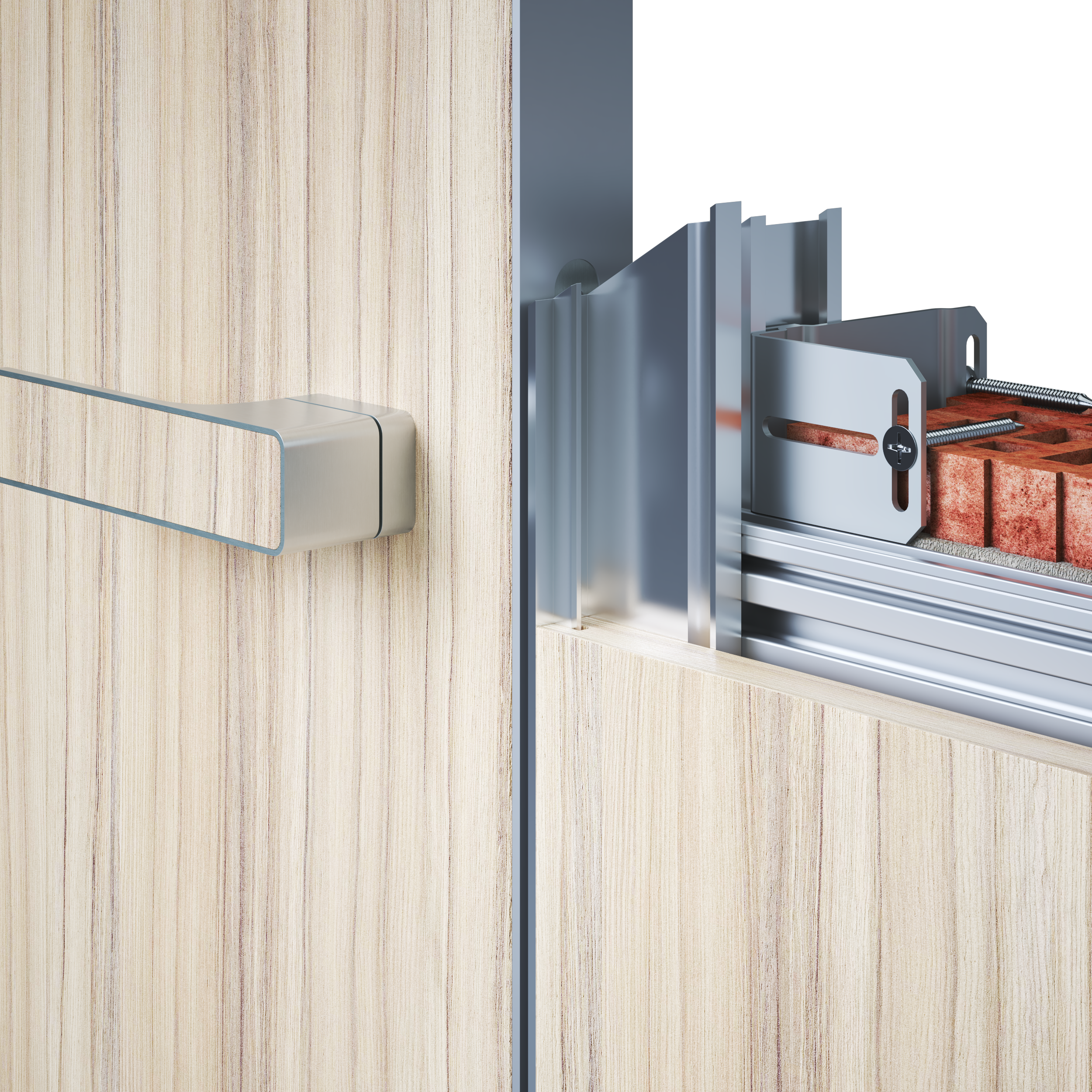

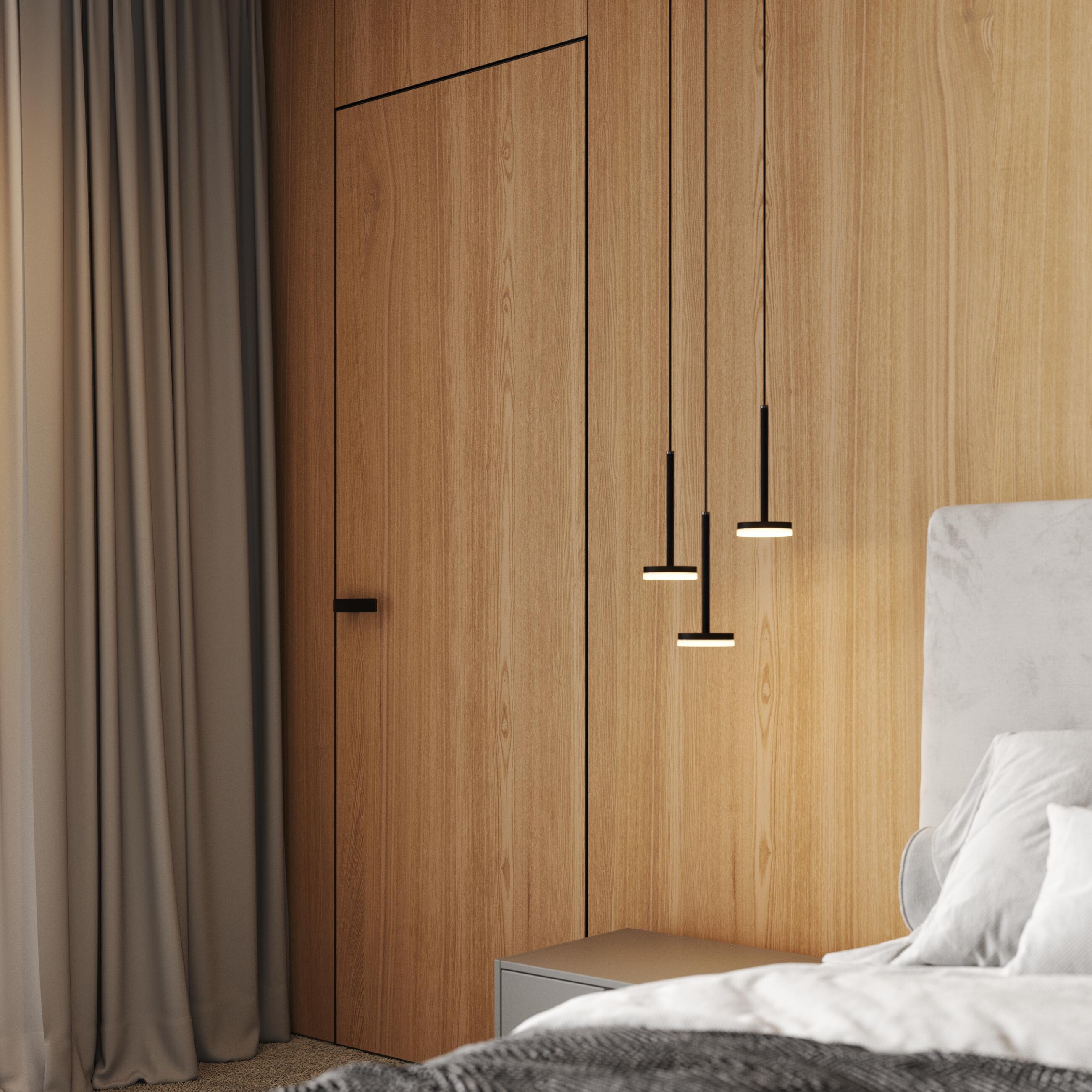

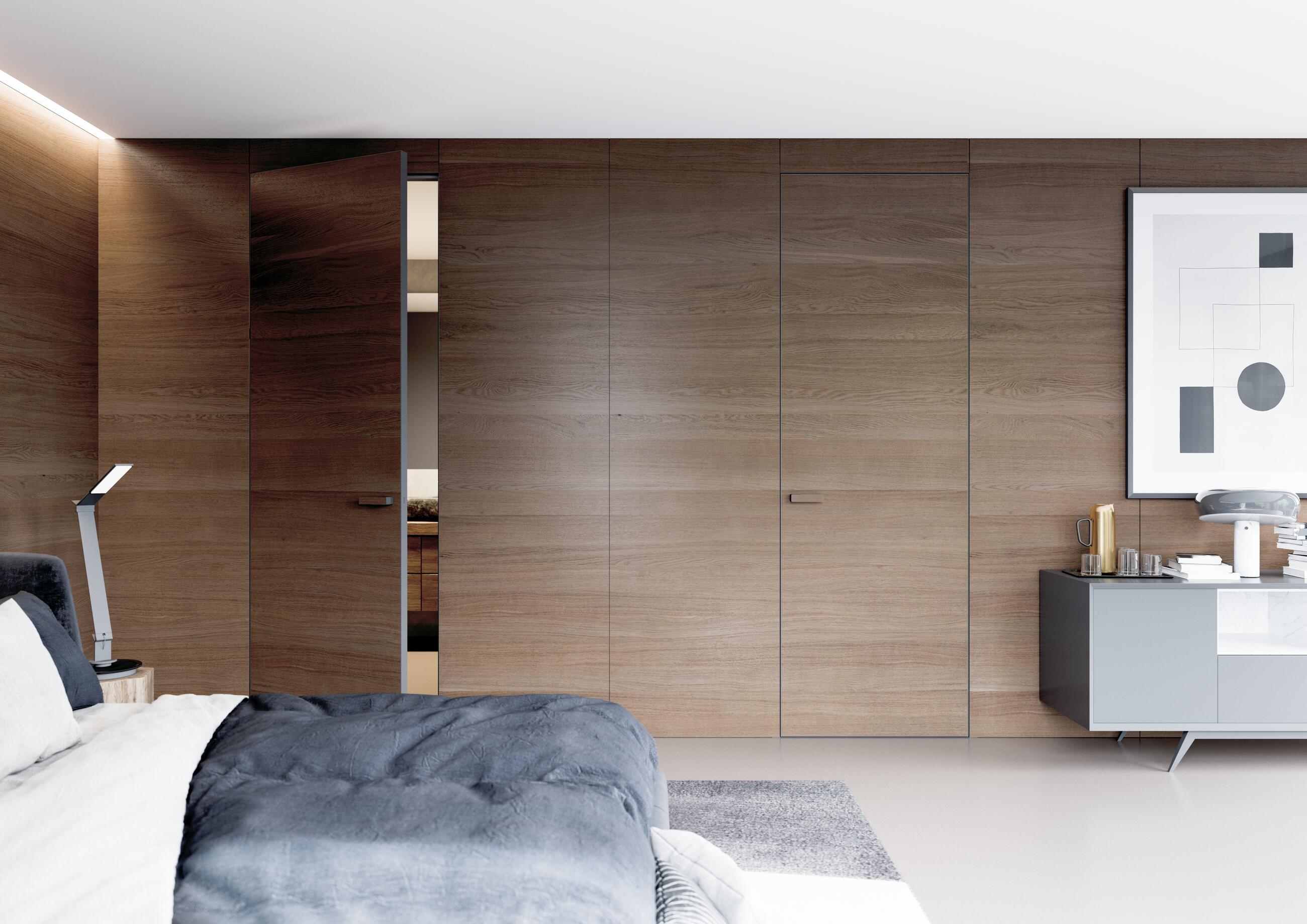

The Efekta 40/00 concealed doorframe aligns the revolving door leaf with the wall cladding into one plane of view. The Master 40/00 door leaf can be hung into the Efekta concealed doorframe, which allows use of the same surface material as on the wall cladding. Standard wooden doors can also be used. This doorframe is for traditional pull opening of the door leaf from the visible matching side.

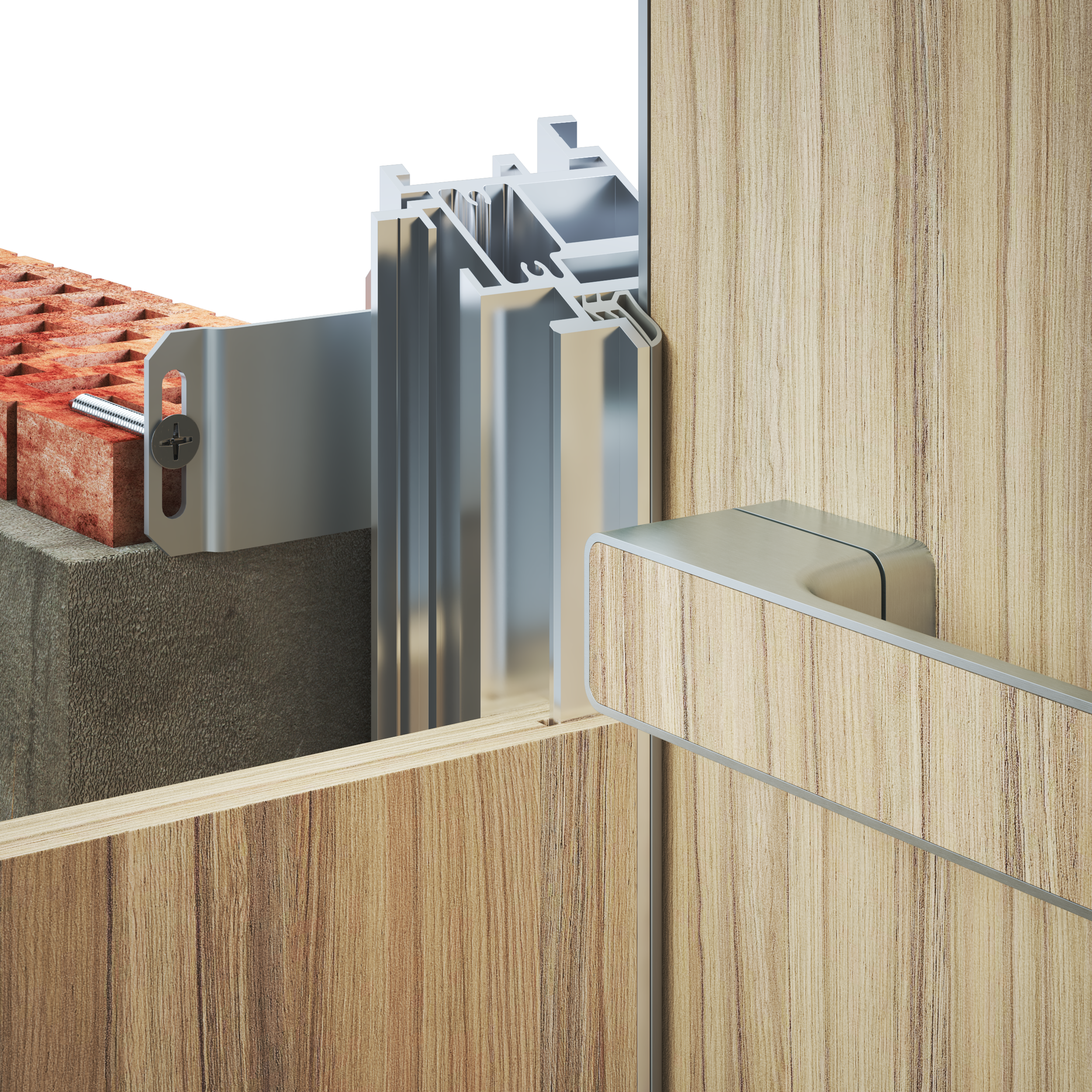

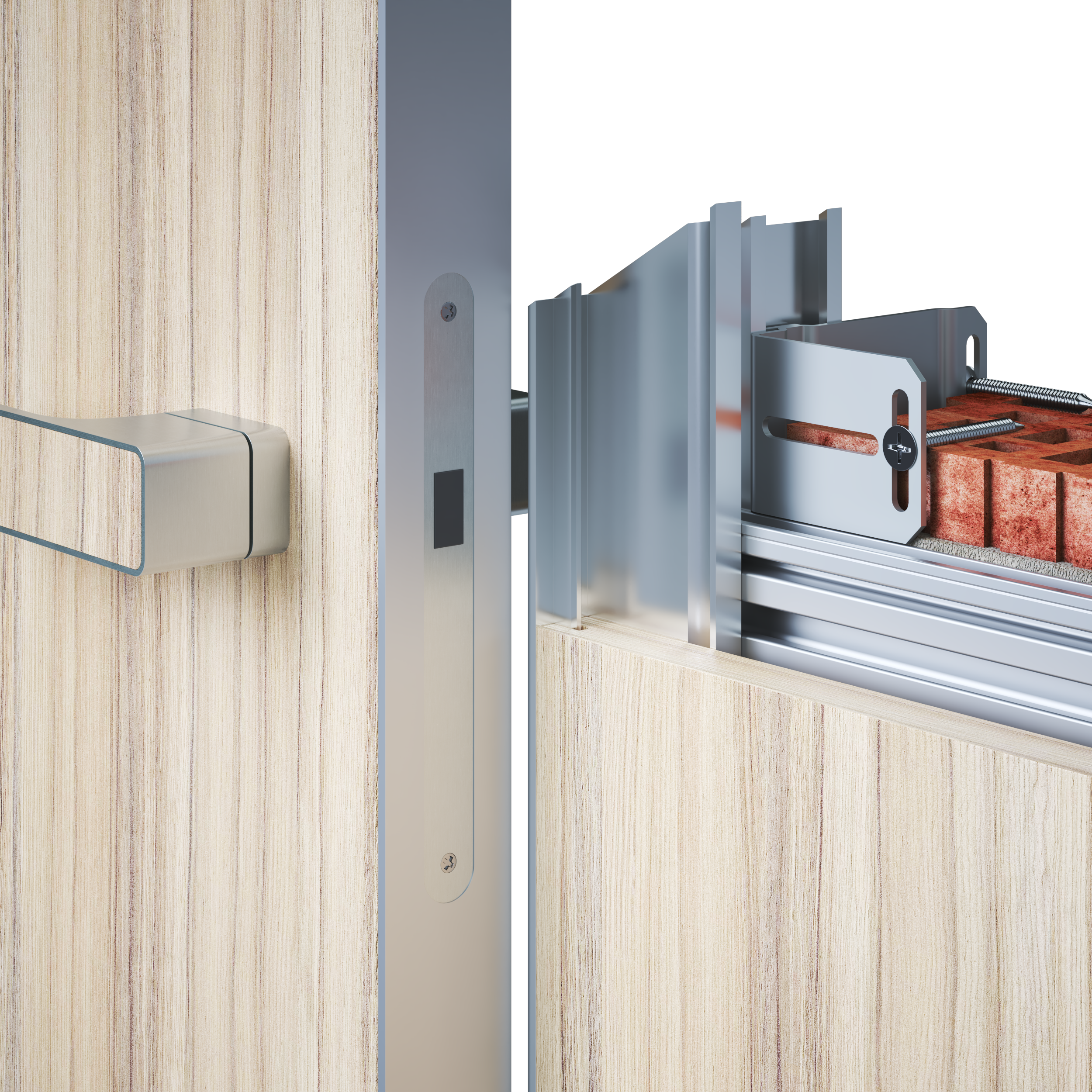

The Efekta concealed doorframe can be used with masonry or drywall crossbars. The doorframe comes with 2 hinges (for heights up to 2,100 mm) and a combined counter-plate and lock for securing the door leaf. For heavier doors, 3 hinges or more are used. The doorframe has a soft PVC seal for silent closing.

We recommend JAP concealed door frames for standard doors from most manufacturers, 40 mm thick.

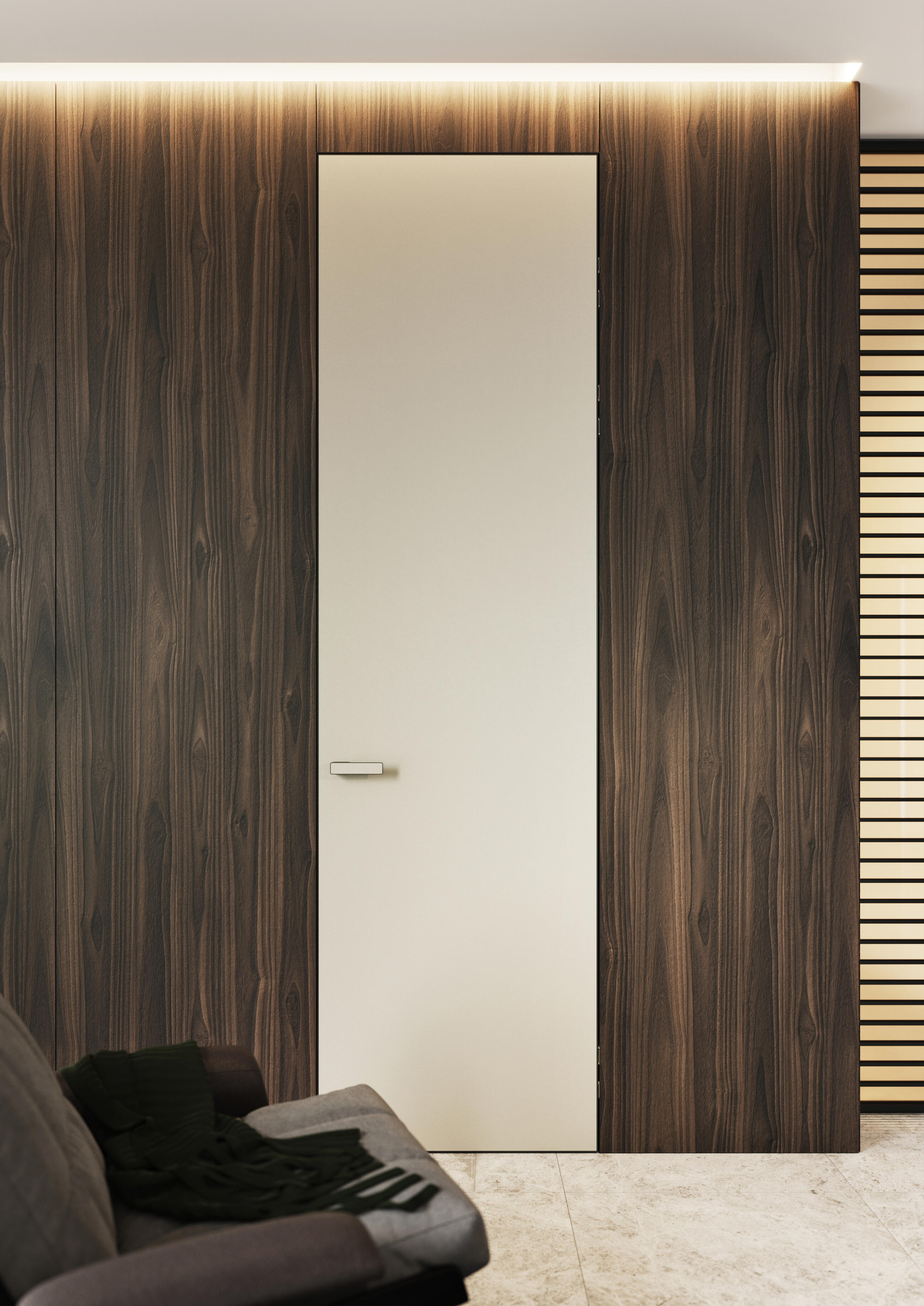

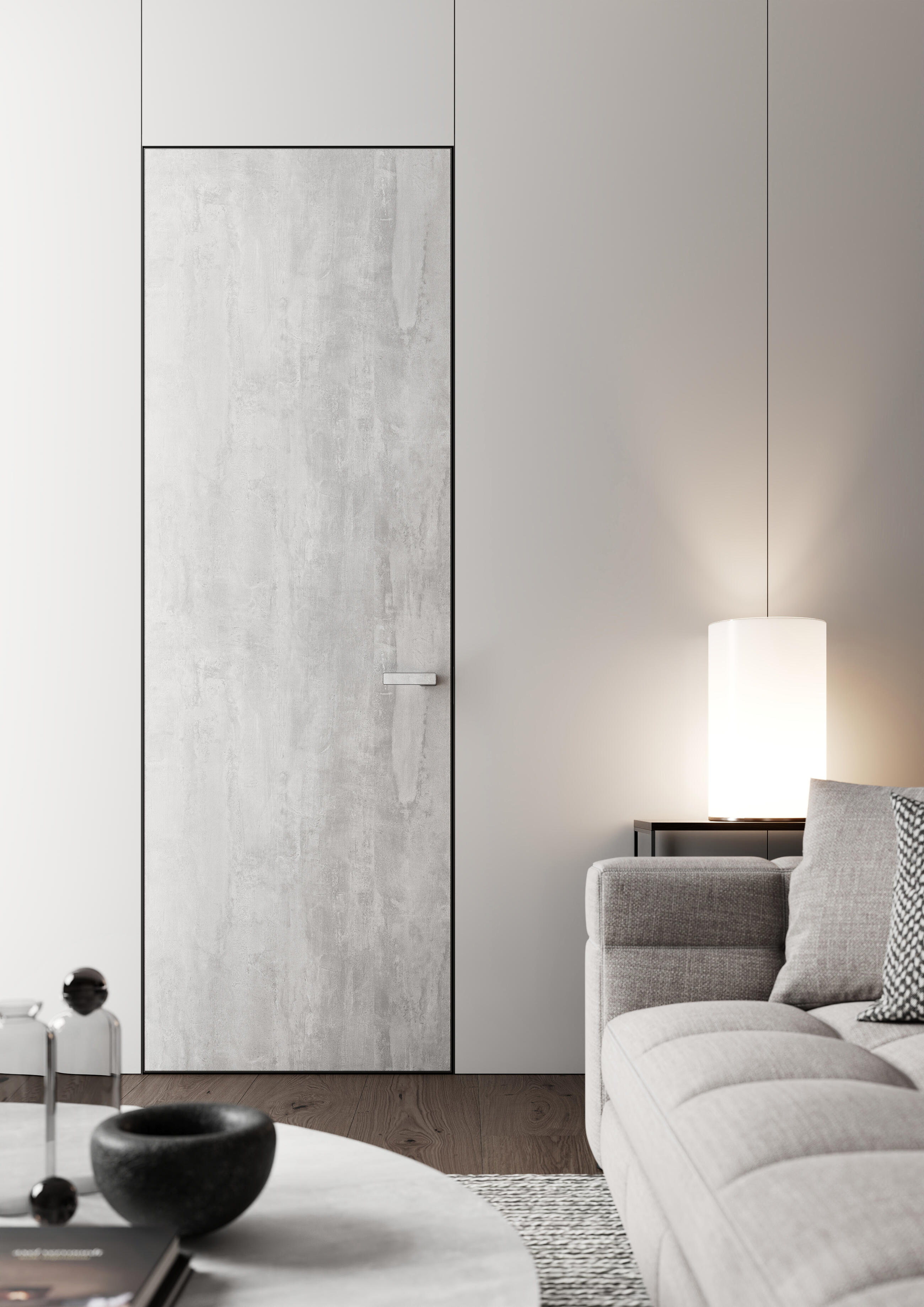

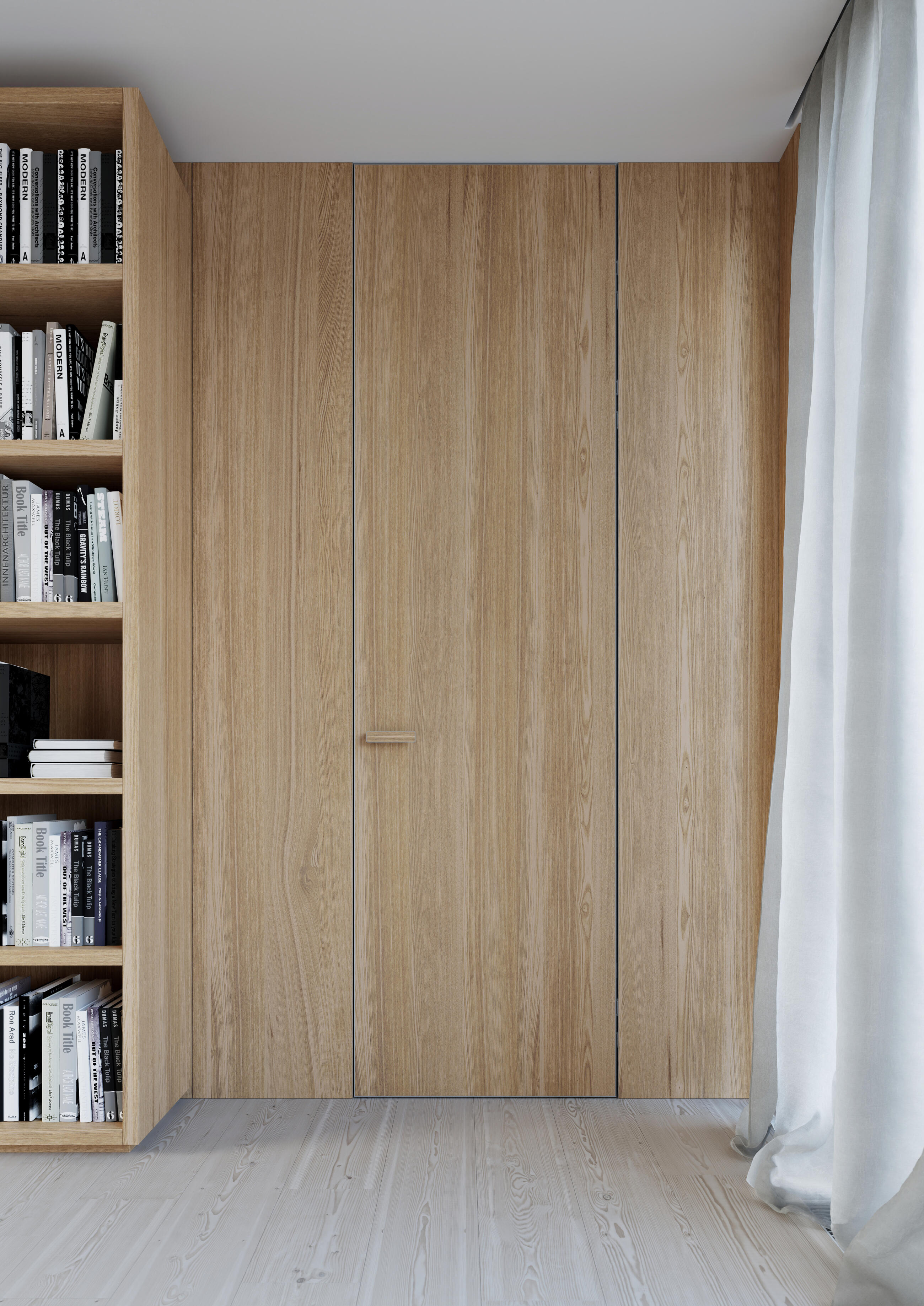

We also produce doorframes without door headers (door leaf to the ceiling). We offer doorframe heights to 3,700 mm. We also produce custom widths and heights. The doorframes are made of anodized aluminium and can be painted according to the RAL K7, NCS swatch books at extra charge. The Efekta 40/00 concealed doorframe has a 5-year warranty.

Technical information

Standard width of passageaccording to standard door leaf dimensions from JAP, Sapeli, Masonite, Solodoor, Porta Door and others
Standard height of passageaccording to standard door leaf dimensions from JAP, Sapeli, Masonite, Solodoor, Porta Door and others
Custom passage height1 975 - 3 700 mm
Minimal thickness of finished crossbar100 mm

Materials

  • anodized aluminium

Which door to use in the doorframe

  • wood

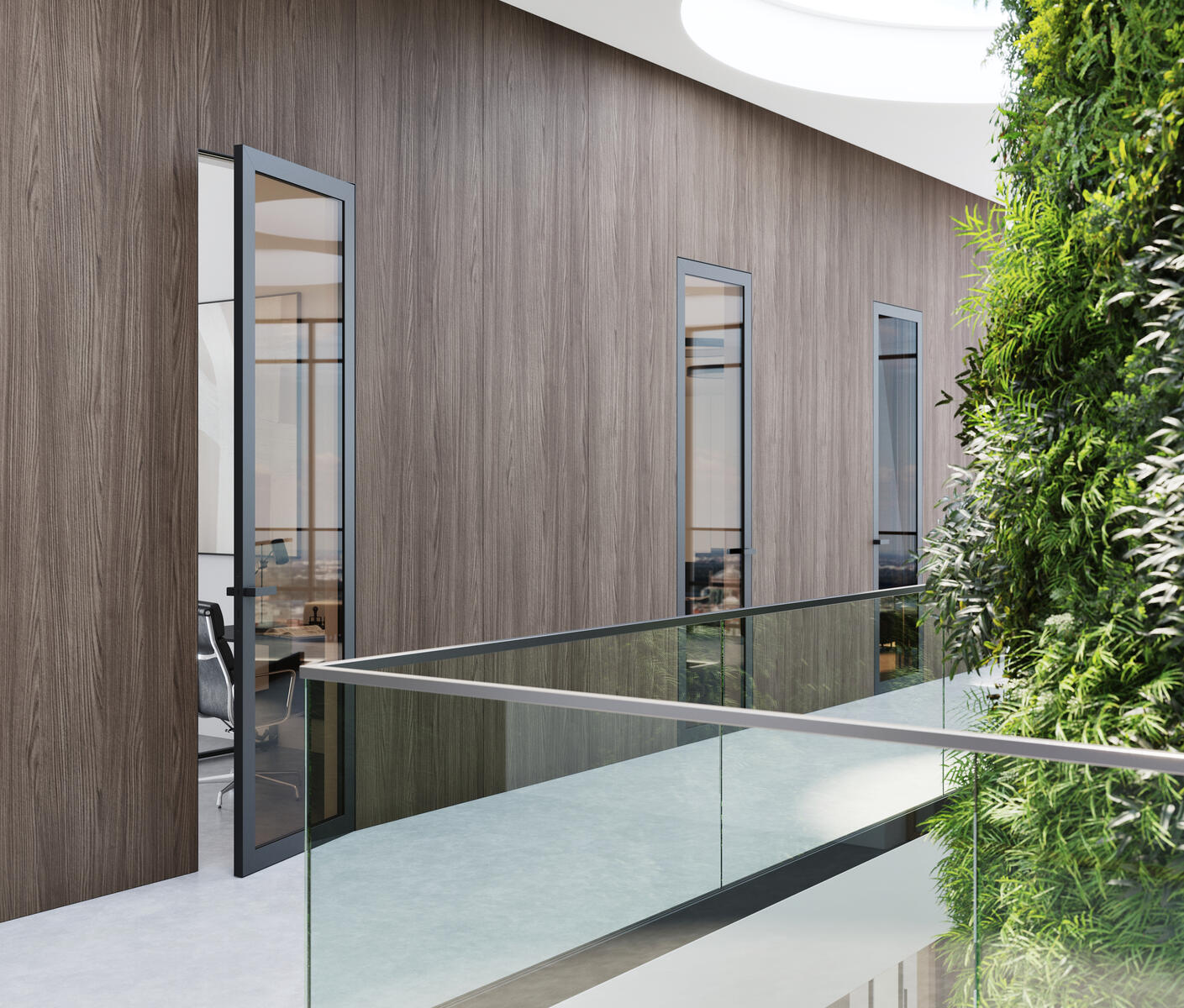

  • all-glass
  • Master
