About the product
Idealine revolving doors are made of an aluminium frame with a 5 mm thick glass panel and a transverse division in the surface. Maximum dimensions of Idealine revolving doors are 1,036 mm x 2,700 mm. The weight of the Idealine door depends on the number of partitions used to divide the door. It is possible to produce just a single-leaf version without a door header.

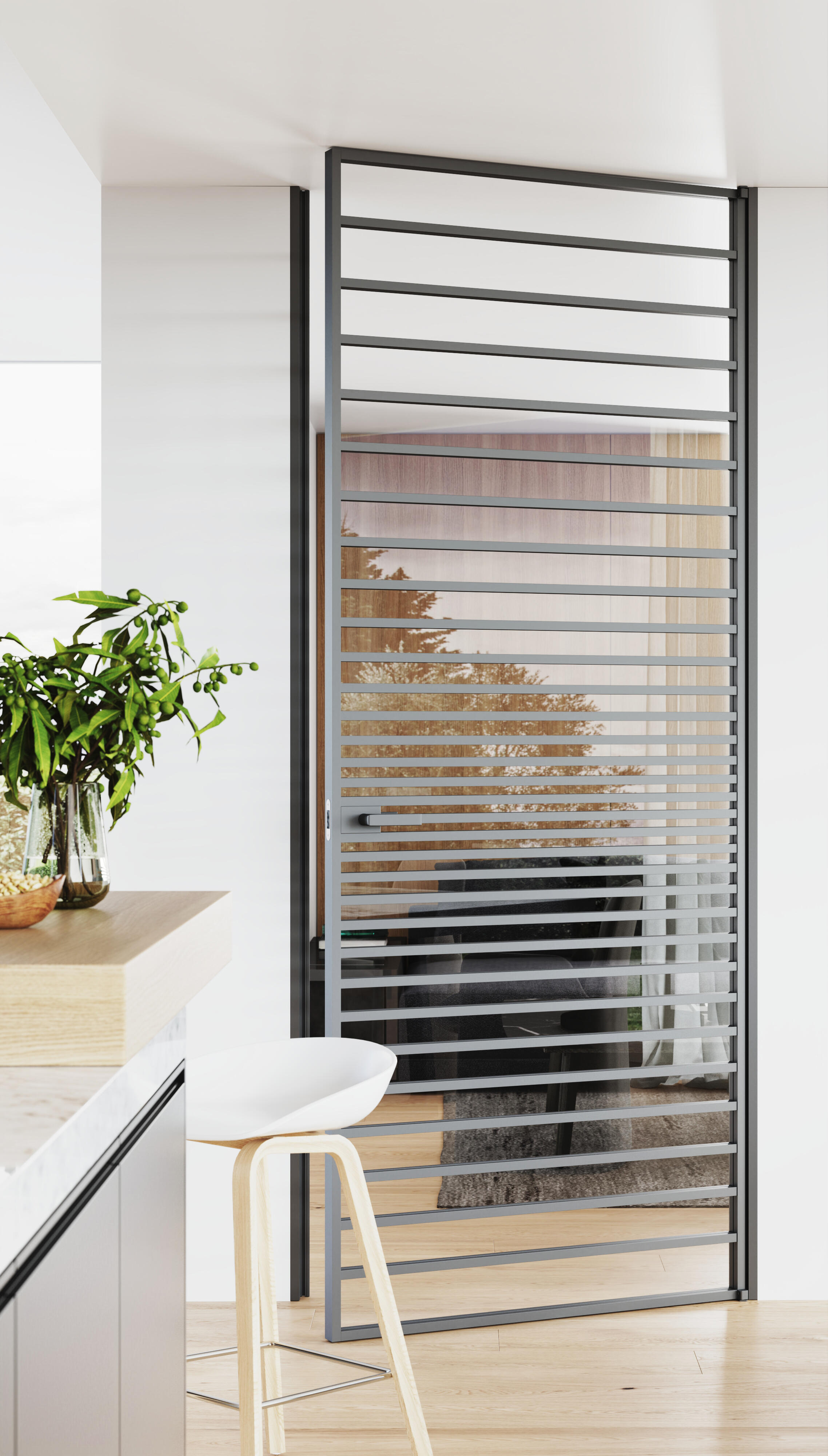

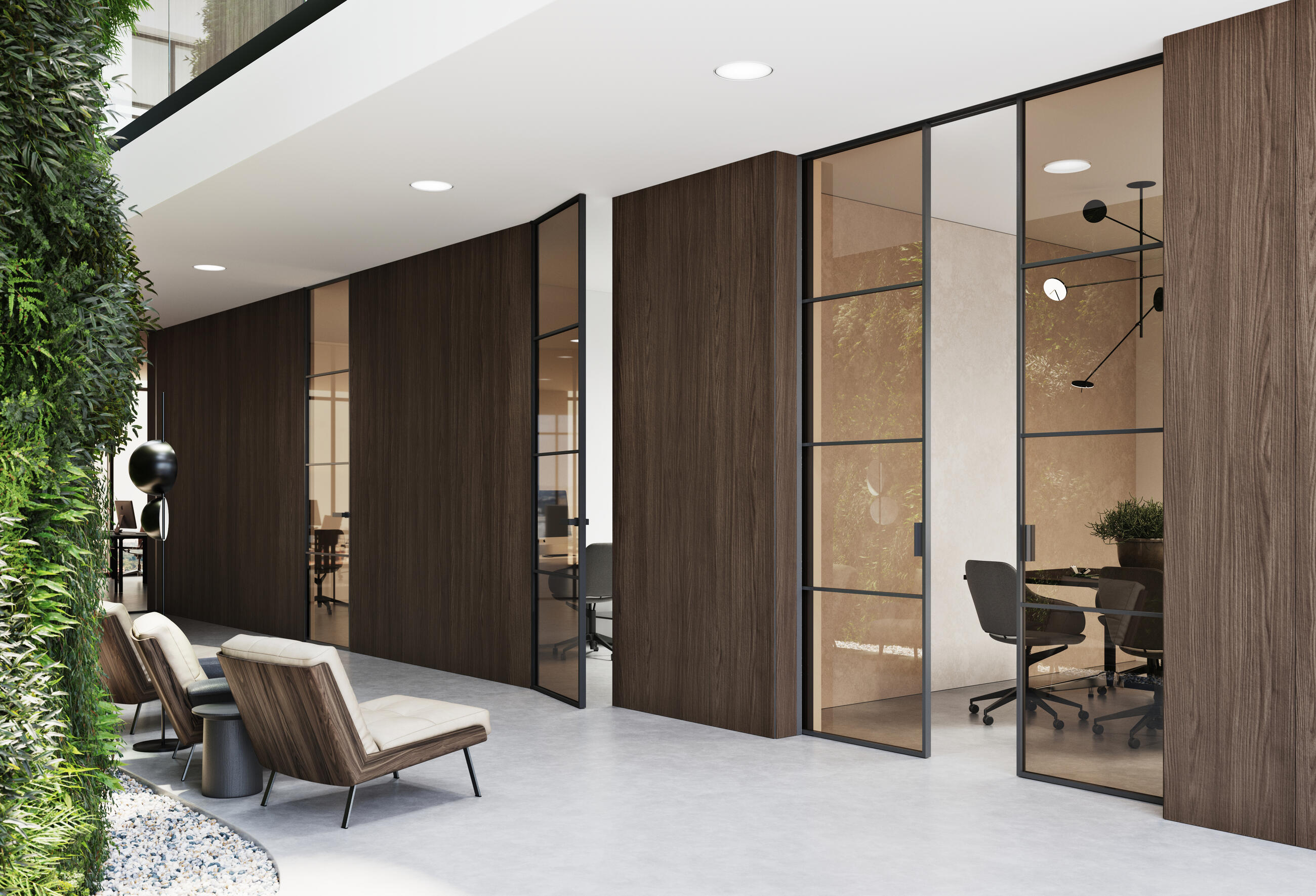

For the glass panel division, 17 mm x 15 mm (w x h) U profiles are used, which are attached with a plastic counter-piece adhered to the glass. The glass can be divided in several variants. Vertical, Horizontal, Frisky, Thin, Leave a Chess (all divisions can be customized to customer wishes).
Gallery / inspiration
Technical information
Standard width of passage | according to standard Idea door leaf dimensions by JAP |
Standard height of passage | according to standard Idea door leaf dimensions by JAP |
Custom passage height | 1 975 -2 800 mm |
Minimal thickness of finished crossbar | 100 mm |
Materials
- aluminium perimeter frame 40 mm thick
- the door frame is made of anodized aluminium profile with surface options according to the RAL, K7, NCS swatch books
- glass panel 5 mm thick
Fittings
- Grande door handle
- Fine door handle
- Elity handle
