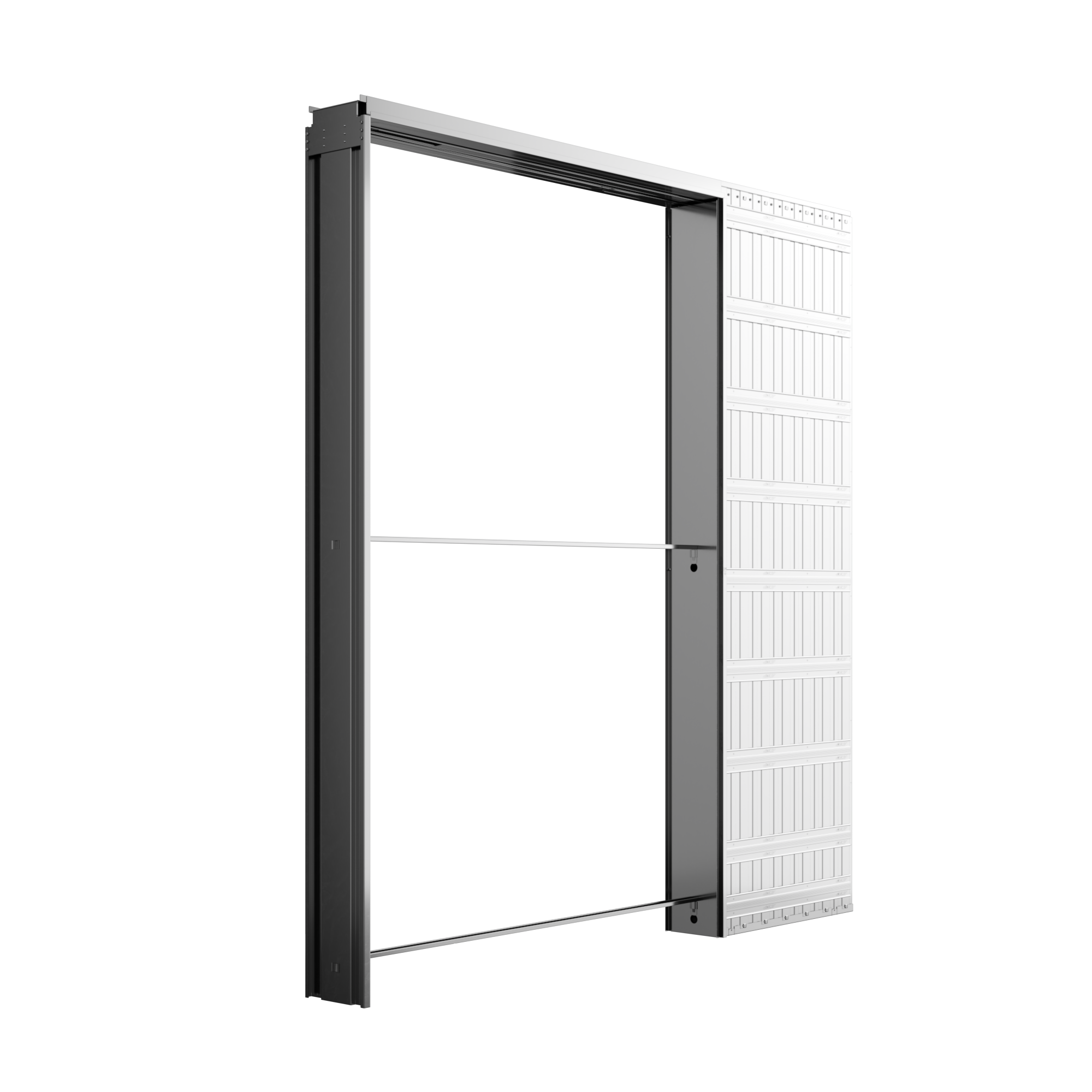

Norma Parallel

A type of double casing in which two door leaves close in one direction parallel to each other. The movement of both leaves is synchronized. In contrast to other Norma casing versions, for Parallel more space must be planned during construction preparation, so that the box is wide enough to accommodate two sliding leaves. This pocket door frame’s indisputable advantage is that, although only one pocket door frame is installed, a passage is available for the two door leaves, and at the same time a smaller construction opening is sufficient. This type of pocket door frame can also be used for an all-glass door. The Norma Parallel door frame is compatible with all door manufacturers.

The Norma Parallel casing is welded. For a masonry partition, it is necessary to equip the construction opening with a lintel — the pocket door frame cannot bear a load. A soft closing mechanism cannot be purchased for this pocket door frame. The entire pocket door frame is made of quality galvanized sheet metal.

• Intended for a minimum finished partition thickness of 200 mm,
• use for drywall and masonry partitions,
• optional custom dimensions to passage height of 2,700 mm,
• maximum weight of each door leaf 120 kg,
• high-quality, very quiet sliding mechanism in a special aluminium rail,
• removable rail,
• adjustable front and rear stop,
• a synchronizing mechanism is included,
• guide pin with precise delimitation to the centre of the casing,
• a switch can be placed on the casing pocket,
• lifetime warranty.

Installation of a Norma Parallel pocket door frame

Installation of the Vetro 22 fixture

• galvanized sheet metal
• aluminium profiles
• aluminium rail

• not painted
