Skirting board with a visible cover profile

The recessed skirting board is designed for concealed doorframes. It consists of two profiles: a mounting embedment profile and a visible cover profile, which can be surface-finished according to the customer’s requirements in NCS, RAL K7, or JAP Metallic. Cabling or LED lighting can be installed in the skirting board (lighting not included in the delivery).

• Due to interference with the door, a standard skirting board (ceramic skirting) cannot be used with concealed doorframes

• Flush with the door leaf

• Allows full door opening without risk of mutual damage

• The embedded skirting profile for floor covering is intended only for plastered walls

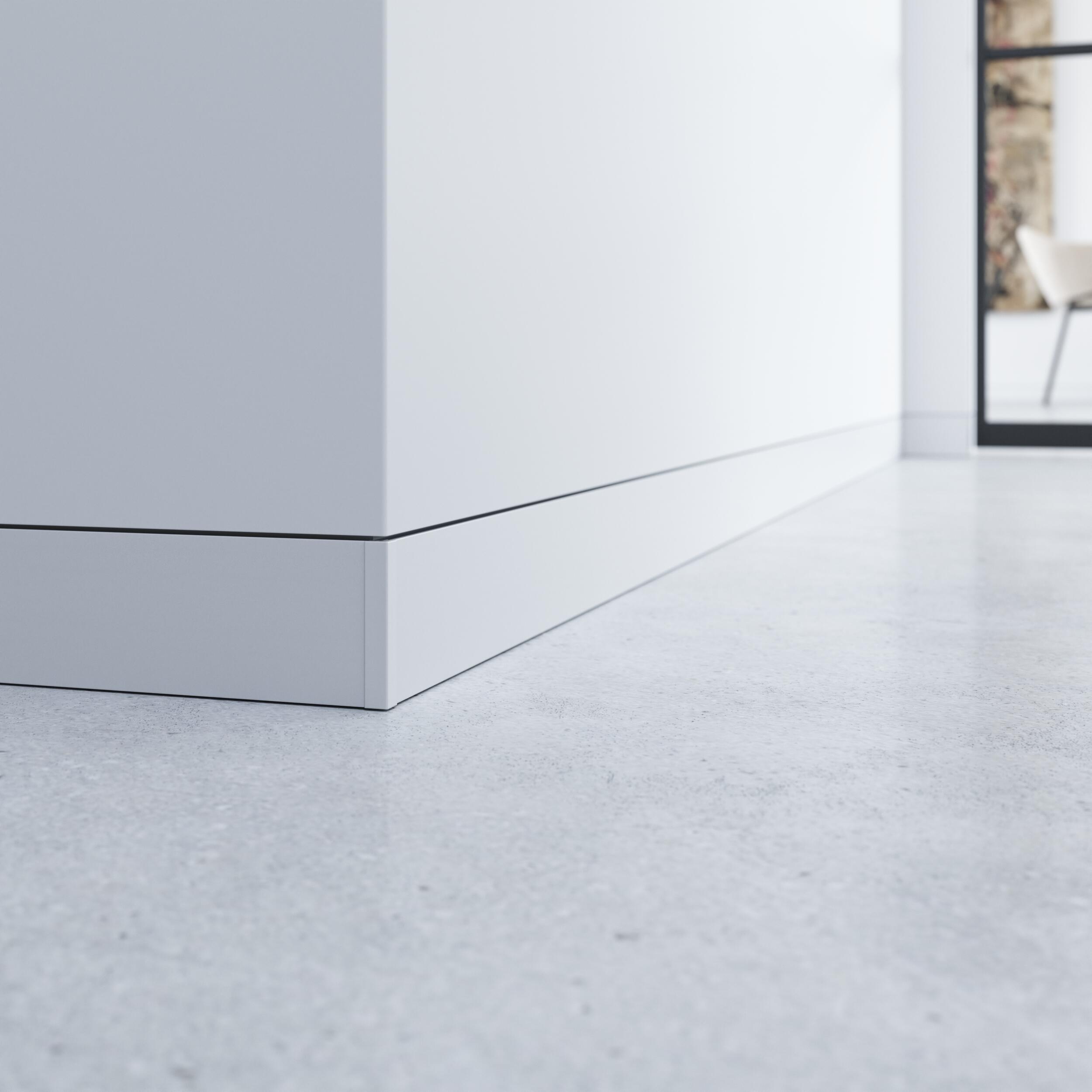

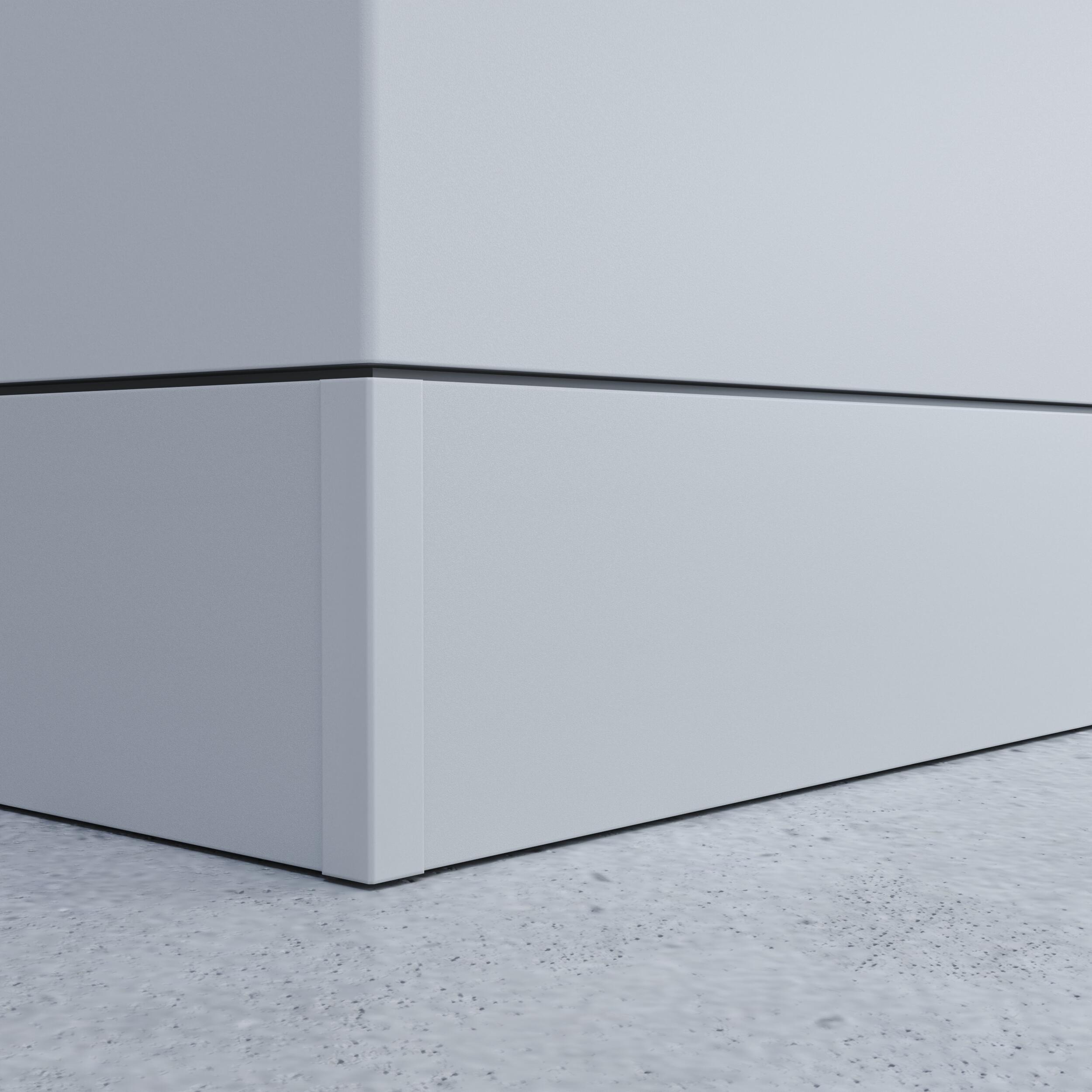

• Skirting profiles are joined using 90° or 180° skirting connectors

• Installation takes place simultaneously with concealed doorframes

Profile installation

• The embedment mounting profile is usually installed before finished flooring – the skirting must be positioned at the correct height, i.e., at the so-called zero level from the finished floor

• After placing the embedment profile, it must be aligned in two planes:
  ° Horizontally
  ° Vertically – in case of wall unevenness, shim with window spacers to prevent deformation of the profile

• The profile is then firmly screwed into the masonry wall (with plugs and screws) or into the drywall UW profile (with screws)

• Afterwards, construction finishing is completed:
  ° Masonry wall – the profile is plastered over; the skirting serves as a plaster stop
  ° Drywall – a drywall board is placed above the skirting, and the transition is finished with filler

• Finally, after all construction work is completed, the visible cover profile/finishing material is installed

• anodized aluminium
