Latente
The Latente counter doorframe is an plastering preparation for defining the construction opening and allows installation of a Latente mounting panel doorframe with a nonstandard thickness of 15 mm.
About the product

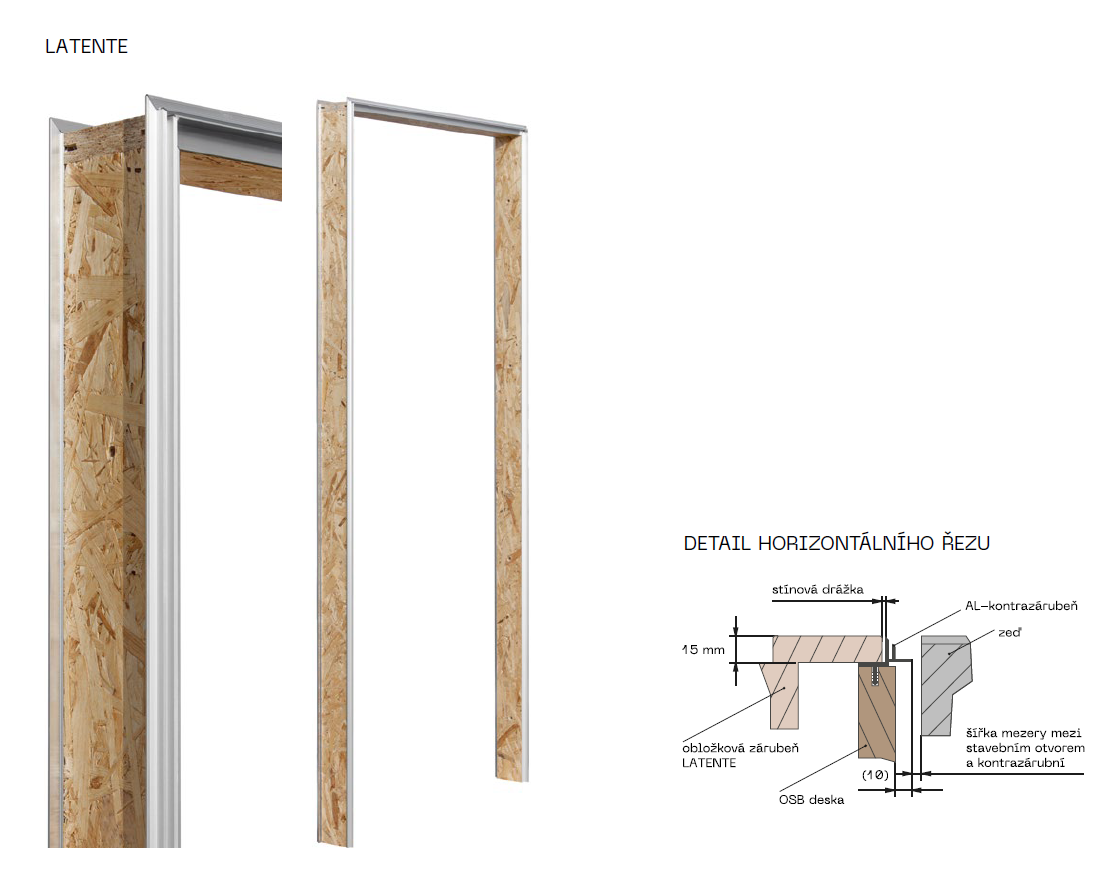

We manufacture “counter doorframes”. These are doorframes that allow recessing the wooden mounting panel flush with the wall. The wooden mounting panel is supplied by the door manufacturer. The passage around the door is delimited by the doorframe, which is flush with the wall. The counter doorframe is made of 22 mm thick OSB panels and raw aluminium profile. The Latente doorframe is used to open the door from the viewing side towards and also away from you.
The counter doorframe is for non-rebated doors, with a total thickness of 40 mm. Standard for Latente counter doorframes is a 50 mm mounting panel with a 12 mm half track and a 2.5 mm shadow groove. The doorframe can be used both with drywall and masonry crossbars, and we make it in maximum heights of 2,700 mm. Widths are produced for various passages at customer request. For single-leaf and double-leaf doors, the counter doorframe is delivered to customers unassembled, and it must be put together before installation. The Latente counter doorframe has a 5-year warranty.

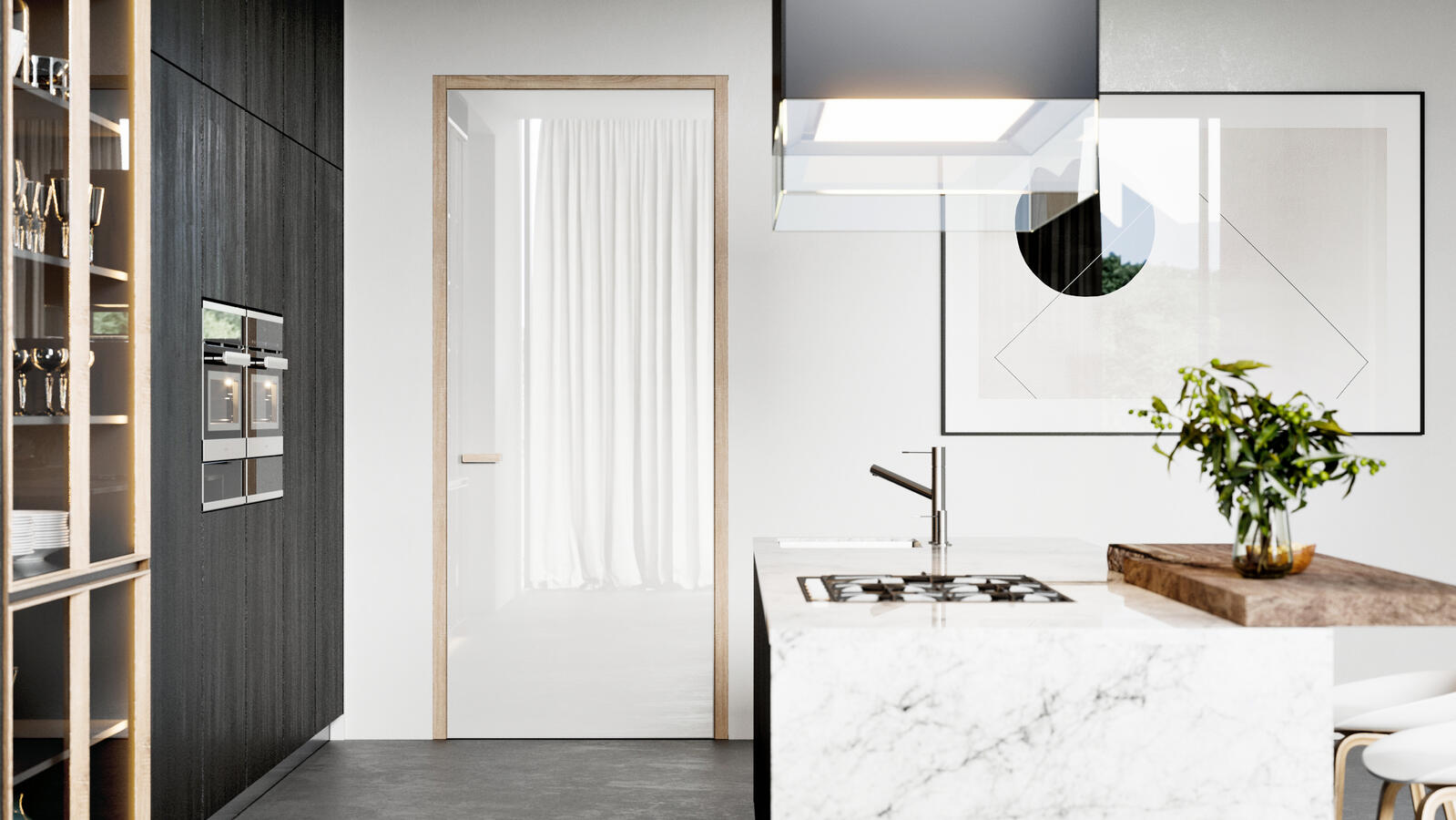

Gallery / inspiration
Technical information
| Standard width of passage | according to the standard dimensions of door leaves by Sapeli and other companies |
| Standard height of passage | according to the standard dimensions of door leaves by Sapeli and other companies |
| Custom passage height | 1 975 - 2 700 mm |
| Minimal thickness of finished crossbar | 100 mm |
Manuals, certificates
Materials
- raw aluminium profile, OSB board 22 mm thick
Which door to use in the doorframe
- only wooden from Sapeli and other manufacturers
