Mounting panel doorframe

Garde

The Garde doorframe is for revolving doors from the Idea range. Can be used in both masonry and drywall crossbars. The doorframe is for additional installation into existing construction openings.

About the product

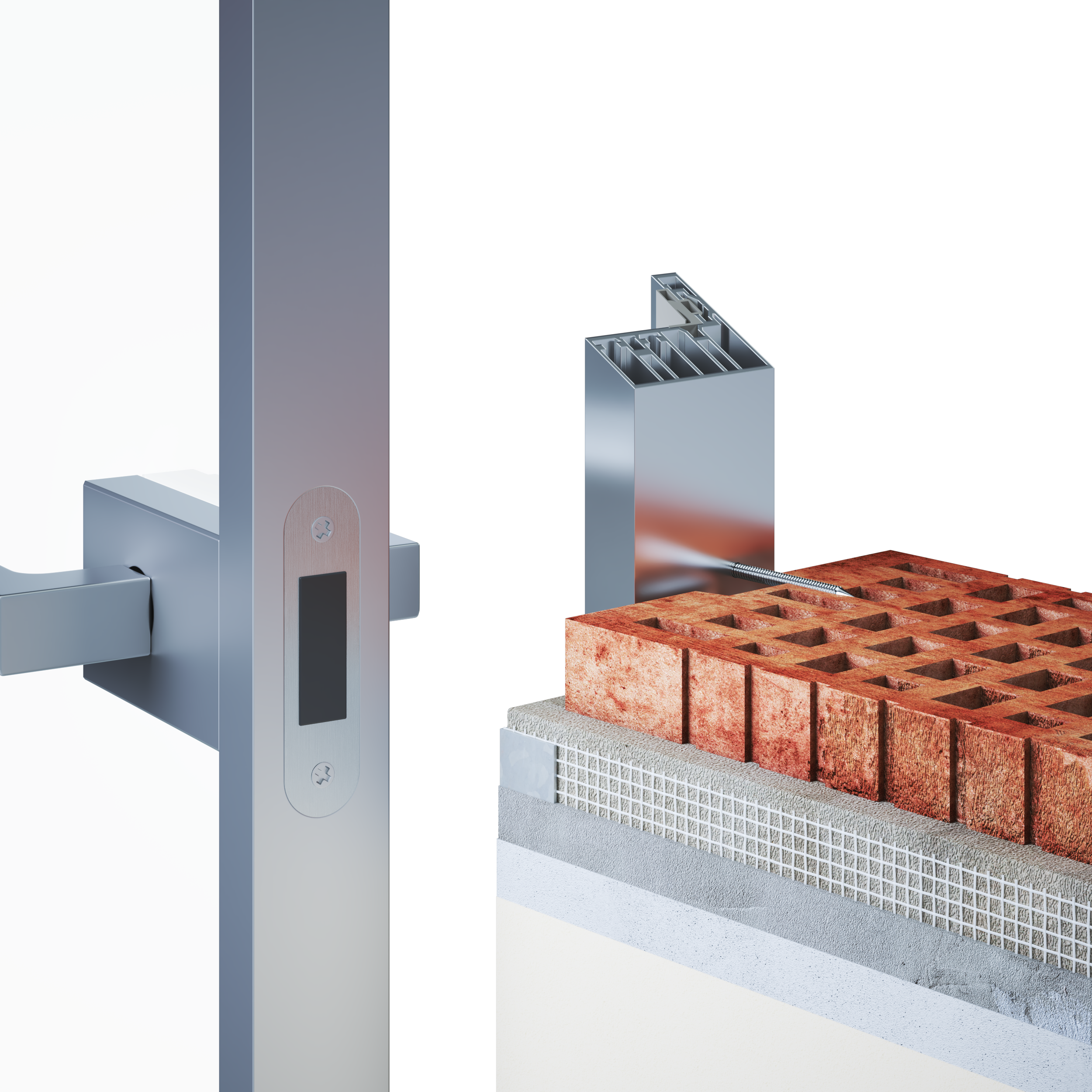

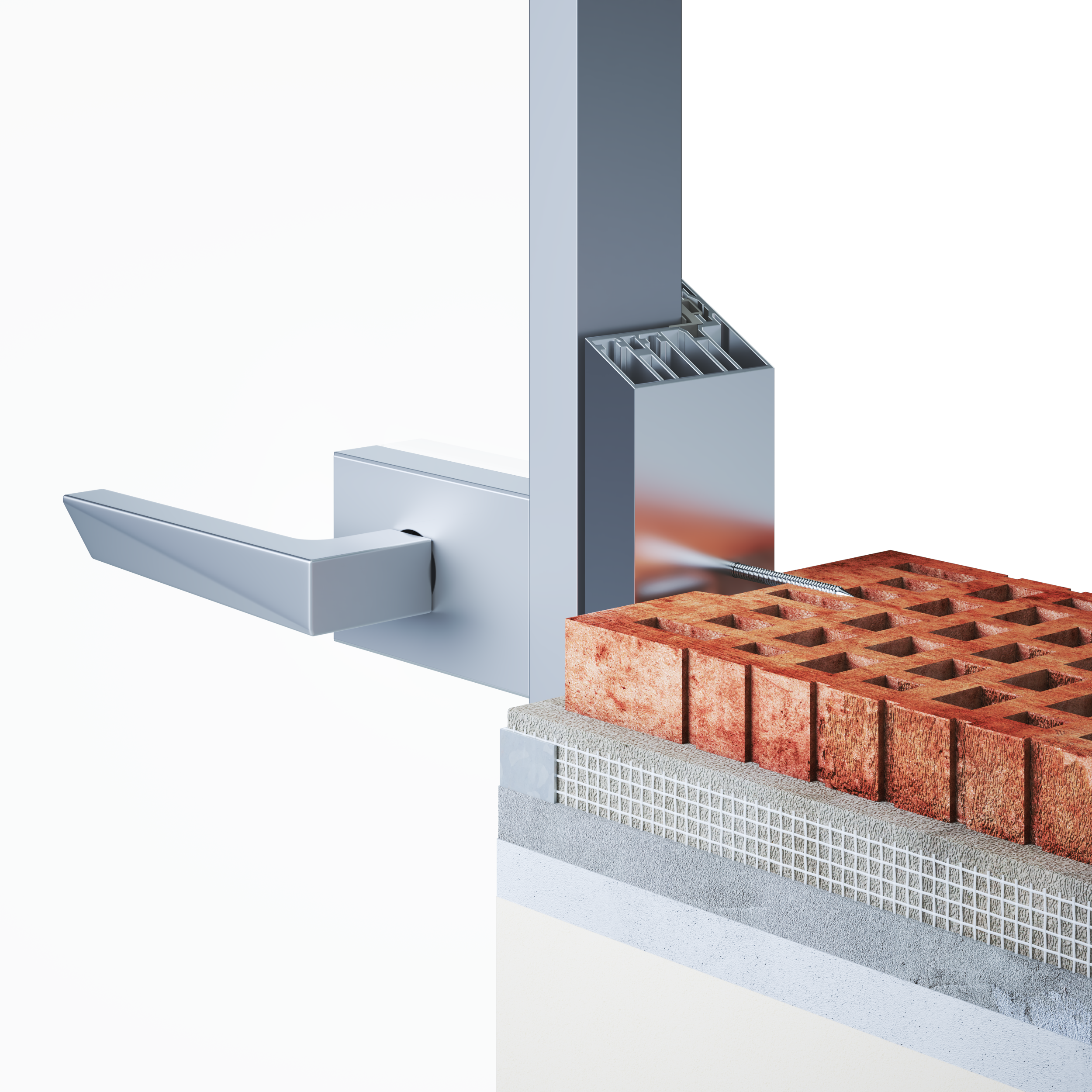

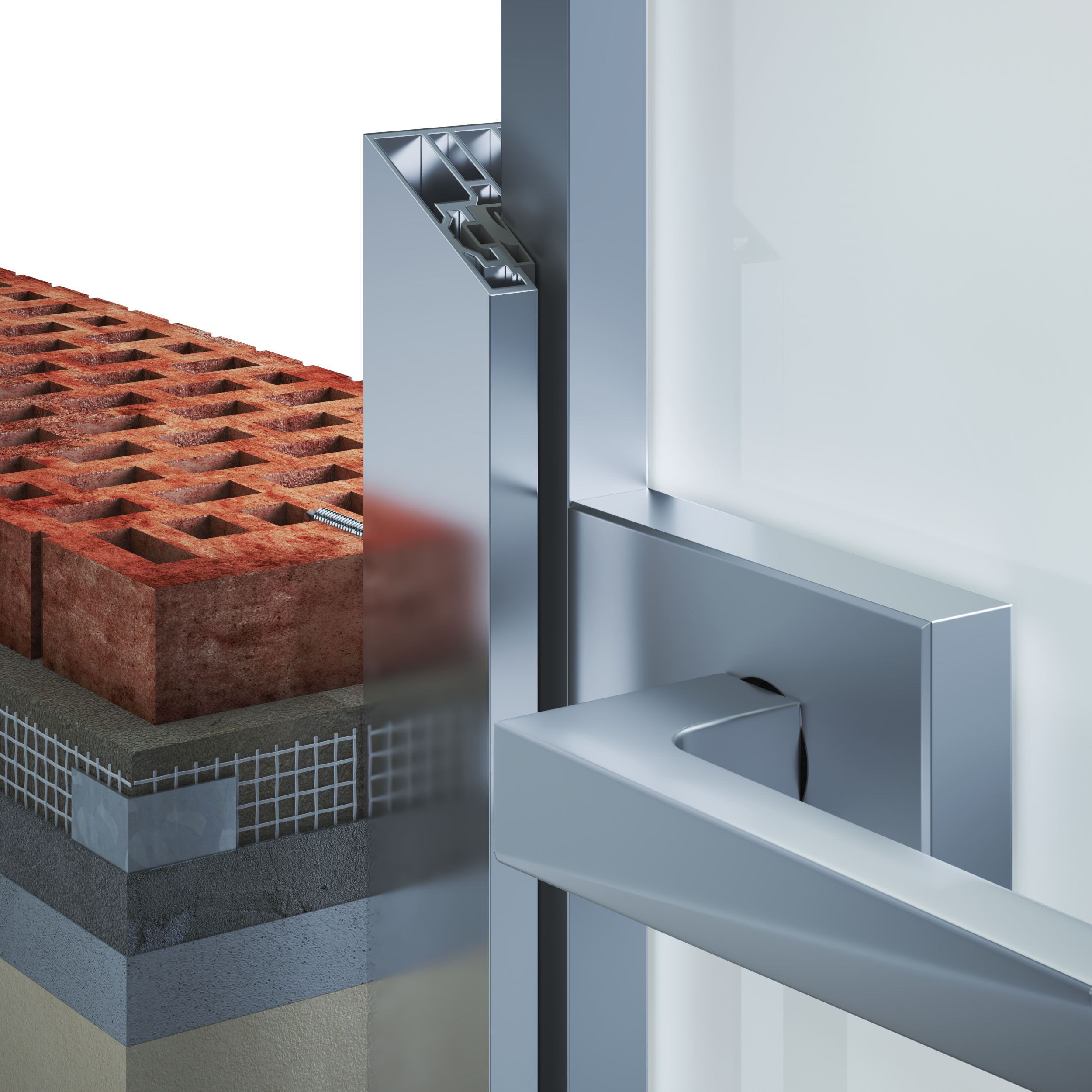

The Garde doorframe is made only in versions without door headers and allows combination with fixed side window holes. Can be used in both masonry and drywall crossbars. The minimum thickness of the complete crossbar must be 60 mm. It can be incorporated into any finished construction opening, which requires maximum building accuracy. For installation, the completed floor must already be laid.

Technical information

Standard width of passageaccording to the standard dimensions of our Idea door leaves
Standard height of passageaccording to the standard dimensions of our Idea door leaves
Custom passage height1 975 - 2 500 mm
Minimal thickness of finished crossbar60 mm

Materials

  • anodized aluminium

Which door to use in the doorframe

  • Idea door range (Idea, Idealine, Ideanet)
