About the product
Pocket doorframe without a mounting panel, for double-leaf sliding doors. Designer model, ideal for minimalist interiors. The casing is adapted such that its hidden construction creates the edge of the passage opening, and if the customer wishes, can be hidden under the finish surfacing of the crossbar. The movement of the wooden door leaves is synchronized with this type of pocket doorframe — a synchronous track is included in the price. We do not provide the synchronizing mechanism kit with glass door leaves. For a masonry crossbar, it is necessary to equip the construction opening with a lintel — the pocket doorframe cannot bear a load.
The Aktive Komfort casing is for wooden, all-glass, Master, Sting or Idea doors. The casings are designed to fit into the Aktive range of hidden doorframes. Entire casing made of quality galvanized sheet metal and aluminium profile.
- intended for a crossbar thickness of 125 mm or 150 mm
- use for drywall and masonry crossbar
- optional custom dimensions to passage height of 2700 mm
- maximum weight of each door leaf 90 kg
- high-quality, very quiet travelling mechanism in a special aluminium rail
- removable rail
- adjustable front and rear stop
- a synchronous track is included
- guide pin with precise definition at the centre of the casing
- a switch can be placed on the casing pocket
- lifetime warranty
For extra charge:
- paint according to swatch books RAL K7, NCS
- for suspension of the door leaf, an assembly kit for wooden or glass doors must be ordered
- optional single-side or double-side silent stop

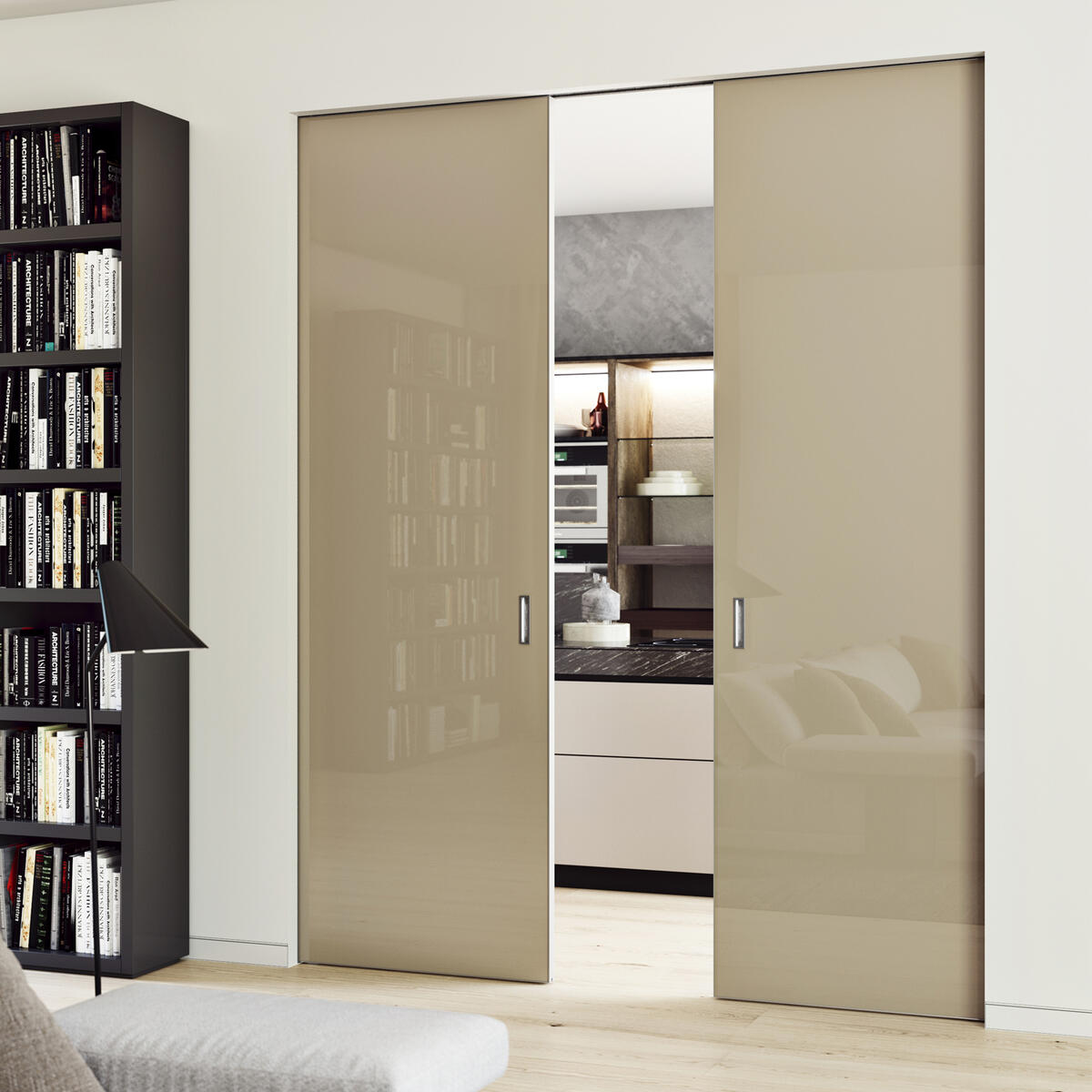

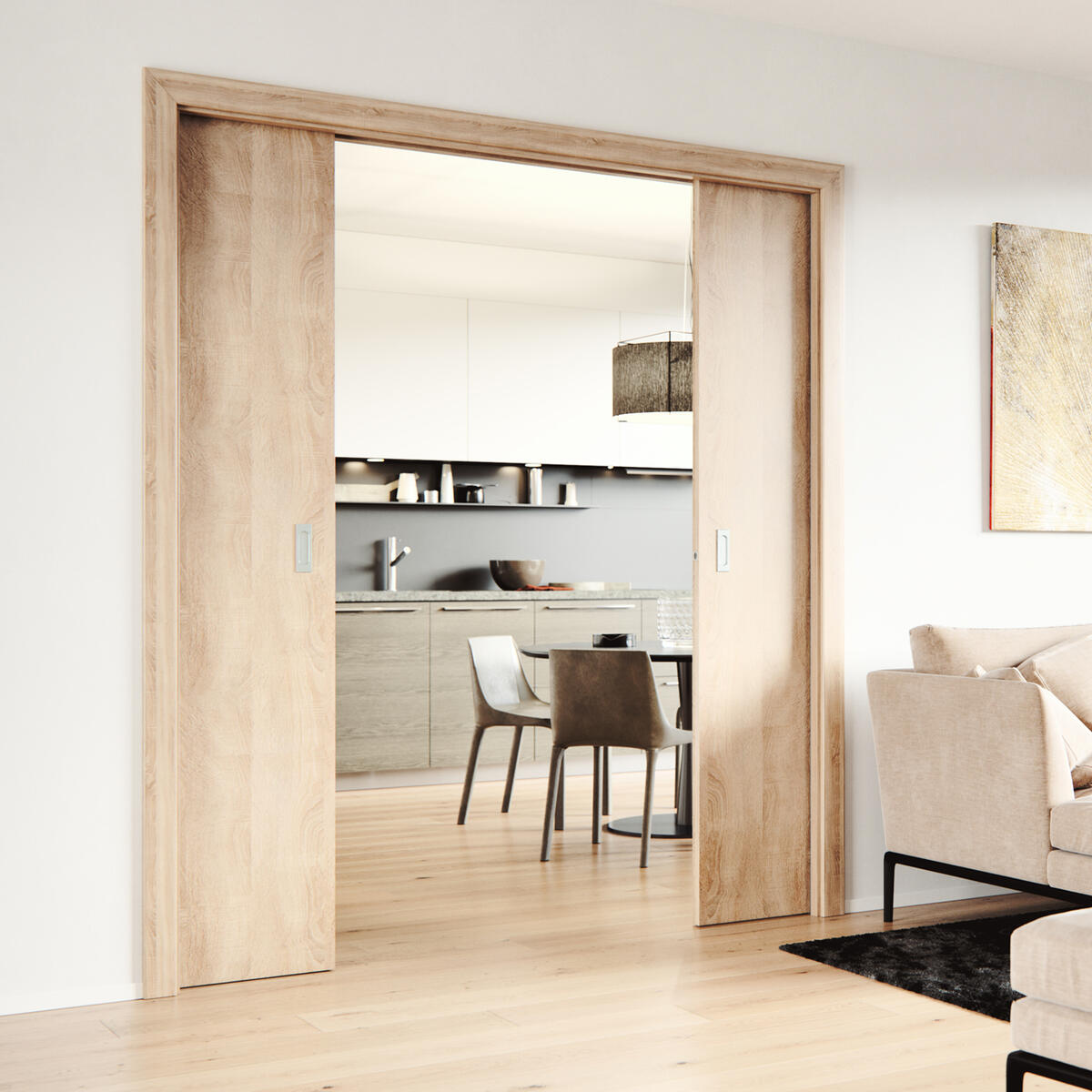

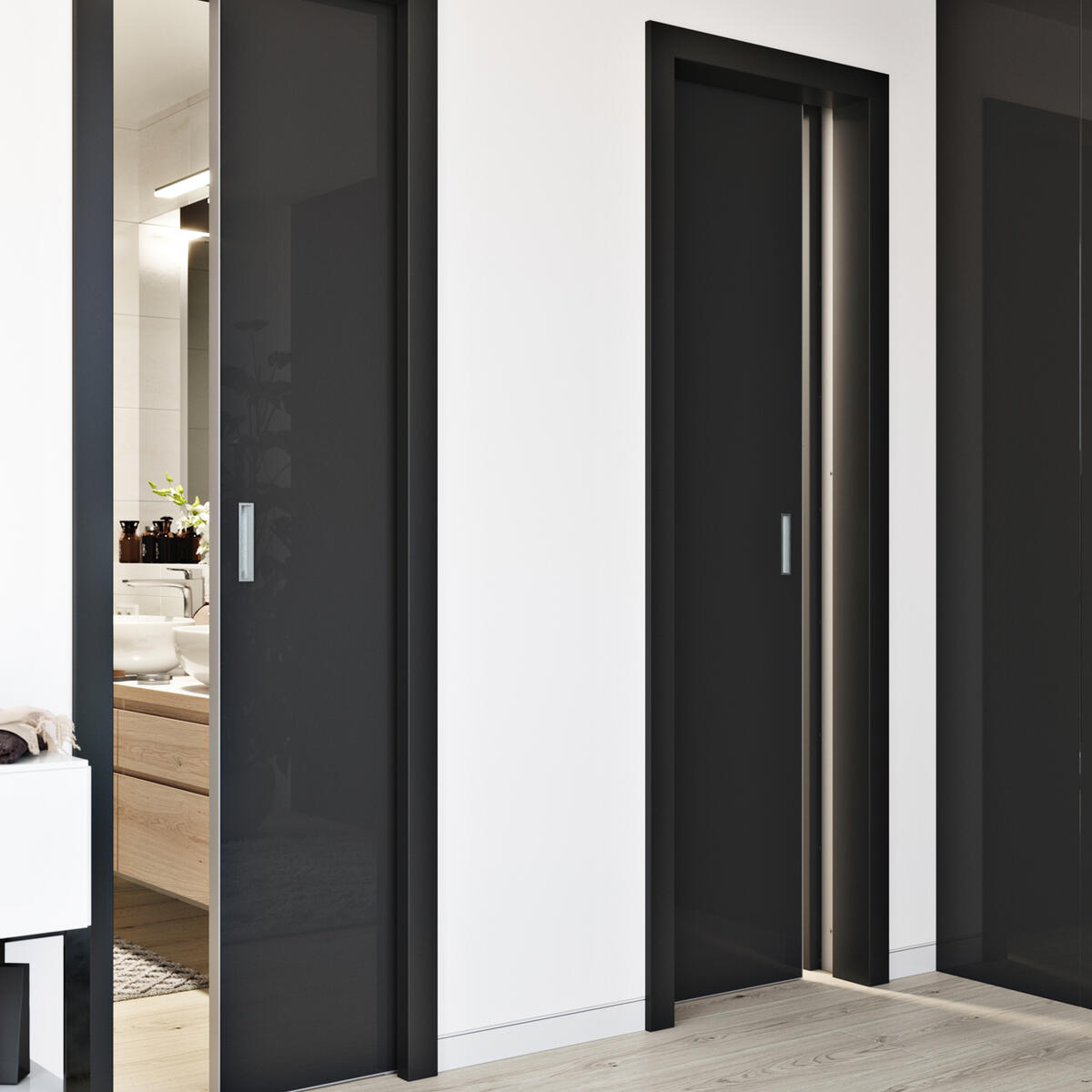

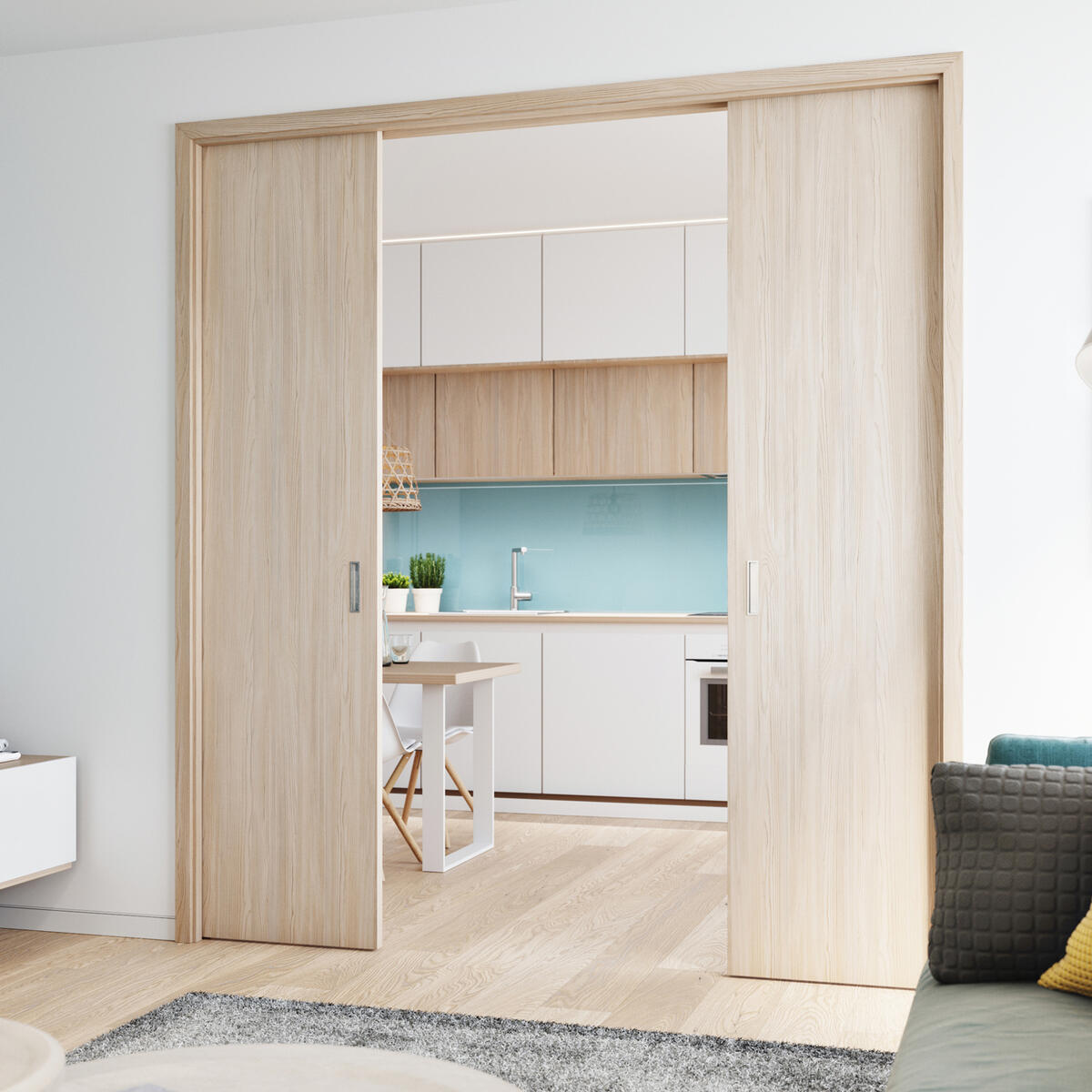

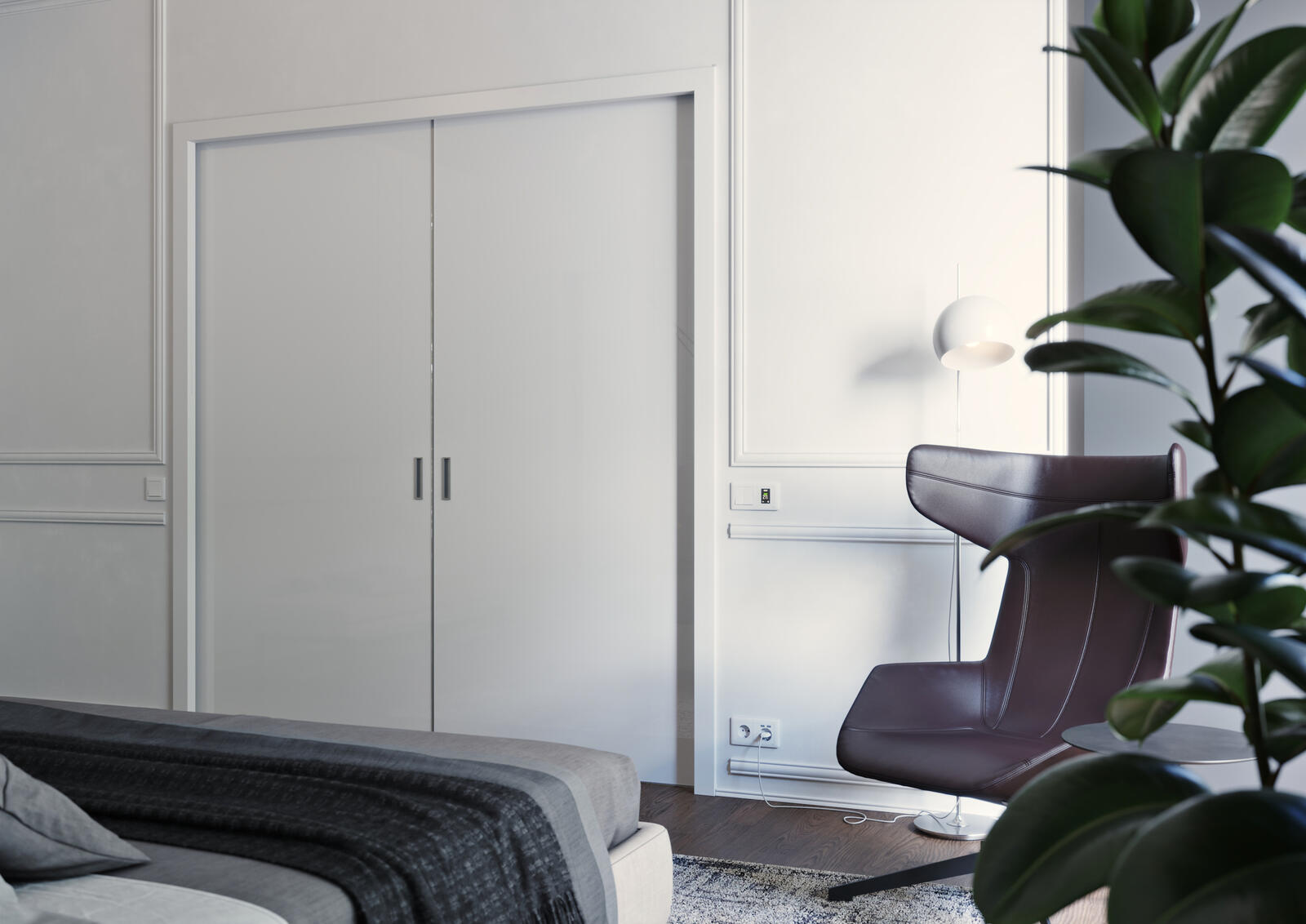

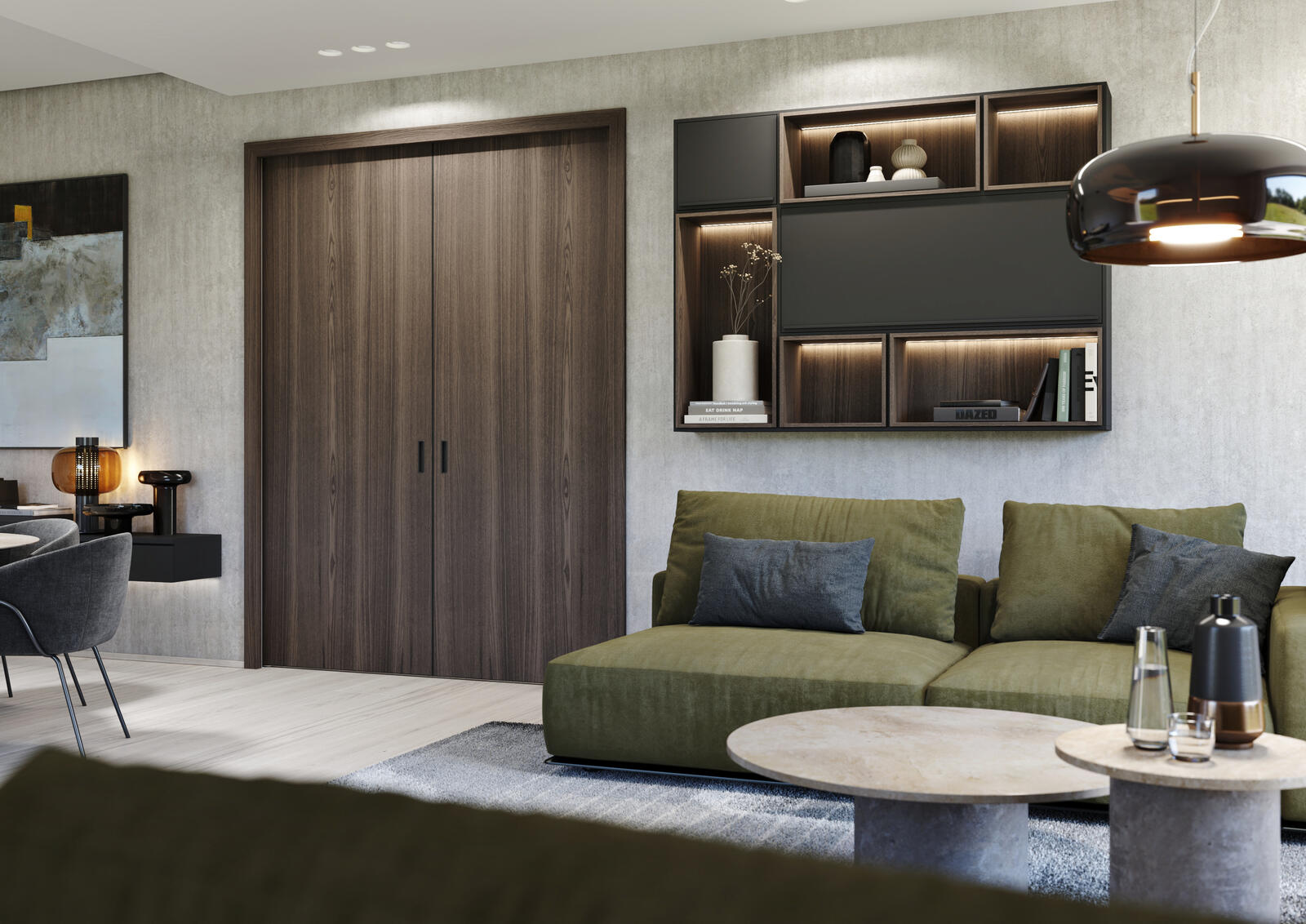

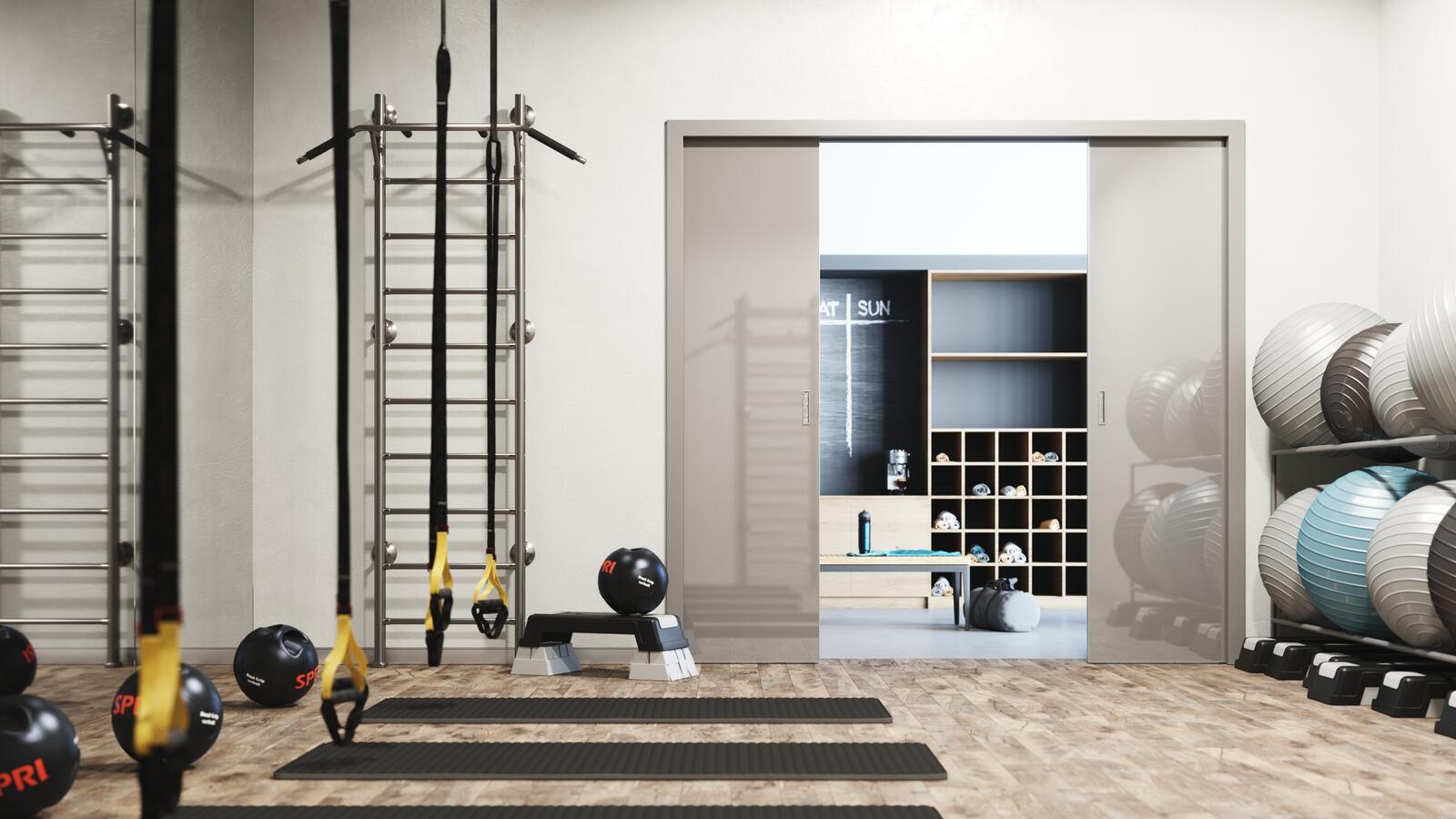

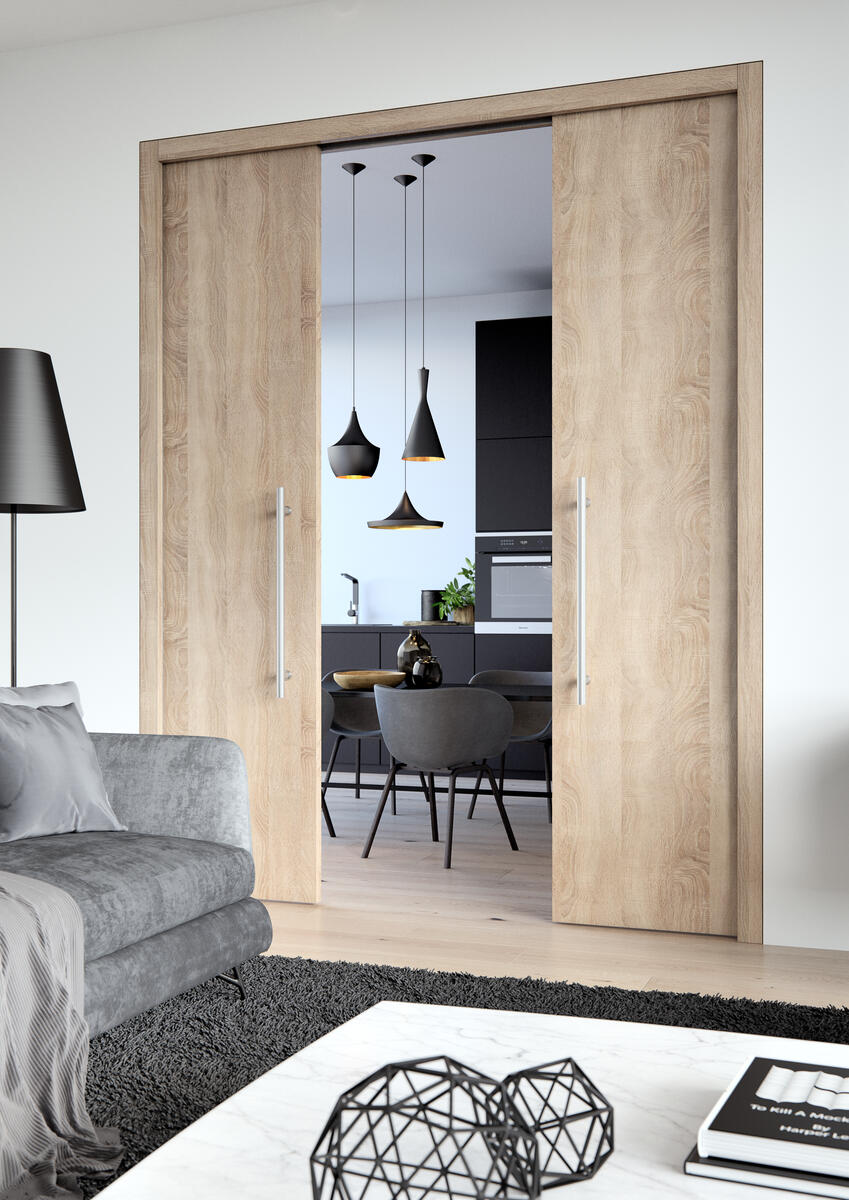

Gallery / inspiration
Technical information
Standard width of passage | 1270 - 2470 mm |
Standard height of passage | 1970 mm and 2100 mm |
Custom passage height | 1975 - 2700 mm |
Minimal thickness of finished crossbar | 125 and 150 mm |
Maximum weight of each door leaf | 120 kg |
External thickness of casing | 100 mm |
Maximum thickness of door leaf for outer casing dimension 100 mm | 40 mm |
Manuals, certificates
Video montážní návody
Materials
- galvanized sheet metal
- aluminium profile
- aluminium rail
Painting
Painted at extra charge according to swatch book
- RAL K7
- NCS
